Remove/Install Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-P-0004MNB
Engine 178 in model 190
Shown on right boost pressure sensor (3) downstream of throttle valve

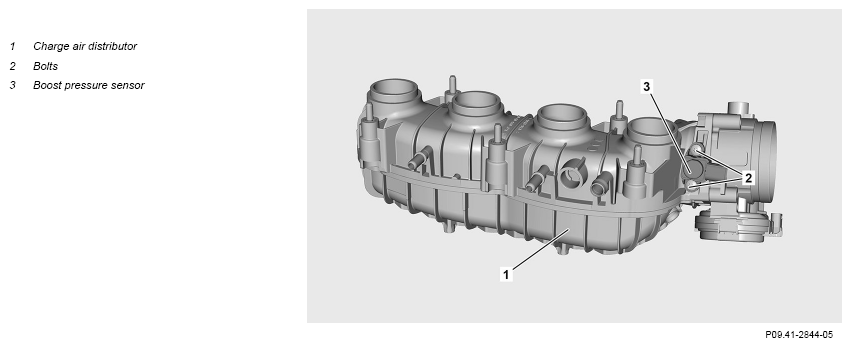

Fig 1: Boost Pressure Sensor Downstream Of Throttle Valve Components Location - Engine 178 In Model 190 (Right Side Shown)
| Remove/install | |||
| 1.1 | Remove left charge-air distributor (1). | When removing left boost pressure sensor (3) downstream of throttle valve. | AR09.41-P-8684MNB |
| 1.2 | Remove right charge-air distributor (1). | When removing right boost pressure sensor (3) downstream of throttle valve. | AR09.41-P-8685MNB |
| 2 | Remove screw/bolts (2). | *BA09.41-P-1005-01X | |
| 3 | Remove left boost pressure sensor (3) downstream of throttle valve and/or right boost pressure sensor (3) downstream of throttle valve upwards. | ||
| Check | |||
| 4 | Check O-ring of left boost pressure sensor (3) downstream of throttle valve and/or of right boost pressure sensor (3) downstream of throttle valve for damage. | If damage is present, ↓ Replace left boost pressure sensor (3) downstream of throttle valve and/or right boost pressure sensor (3) downstream of throttle valve. |
|
| 5 | Install in the reverse order. | ||
| 6 | Connect vehicle diagnosis system and read out fault memory. | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Perform Engine test run and check Engine for proper operation and leak tightness. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
