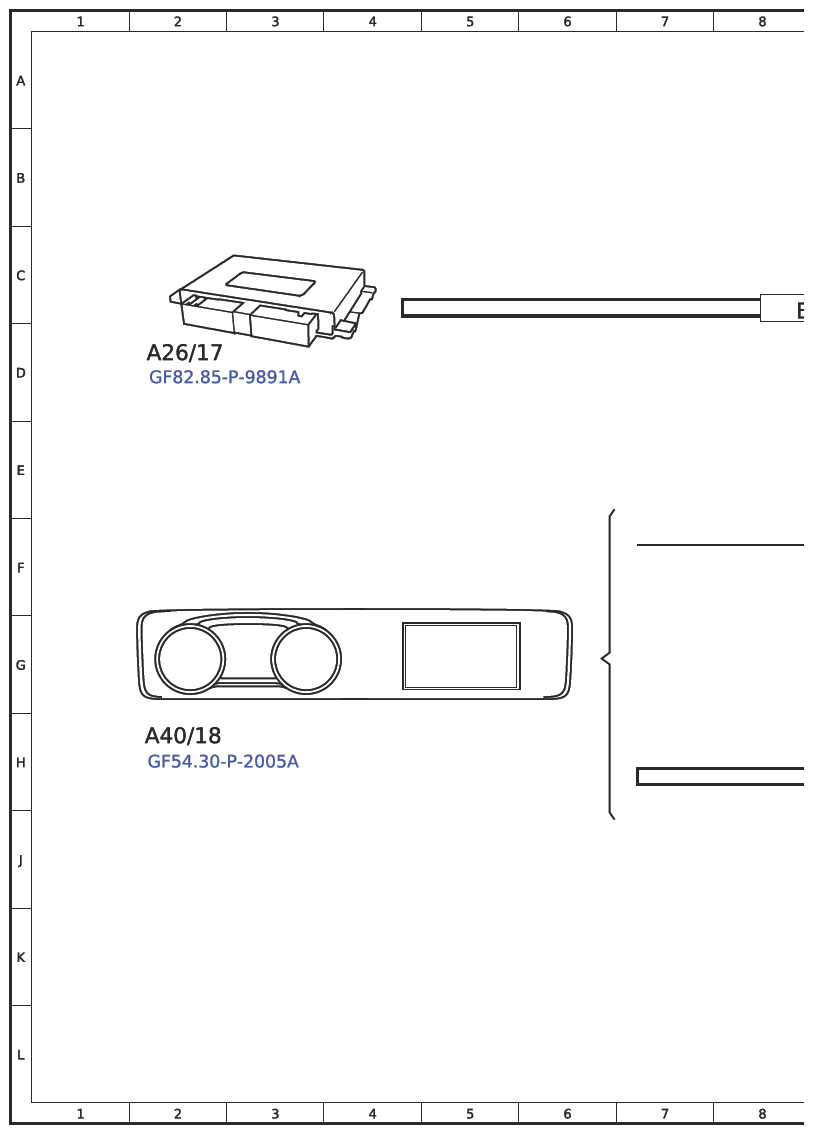

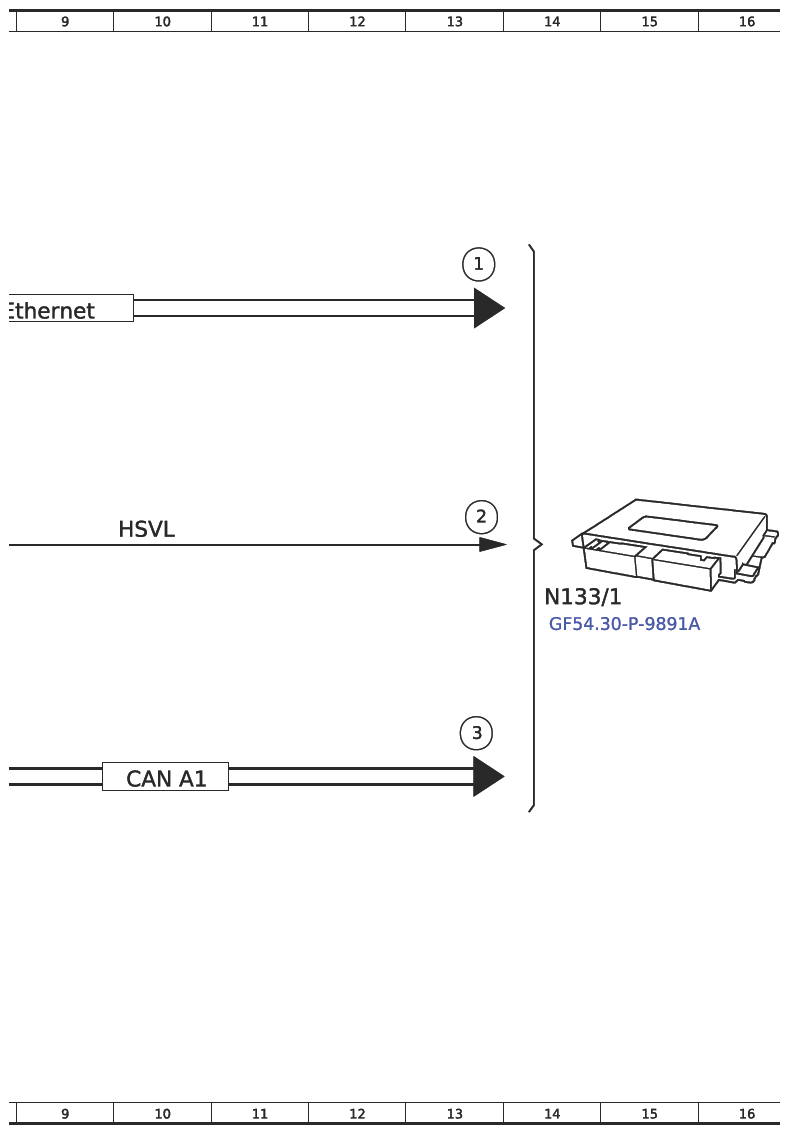

Function Schematic Of Instrument Cluster Picture Display - PE54.30-P-2506-97A
Model All (CAR) With Code 451 (3D combination display)
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 2D |
| A40/18 | Instrument cluster display | 2H |
| A40/18 | Instrument cluster display | 25G |
| Ethernet | Ethernet | 9C |
| HSVL | High-speed video link | 10F |
| HSVL | High-speed video link | 20F |
| N133/1 | Instrument cluster control unit | 14F |
| CAN A1 | CAN 1 for telematics | 10H |
| 1 | Display settings, request | 13C |
| 2 | Driver camera head position, signal | 13F |
| 3 | Driver camera eye distance, signal | 13H |
| 4 | Image data, signal | 24F |
