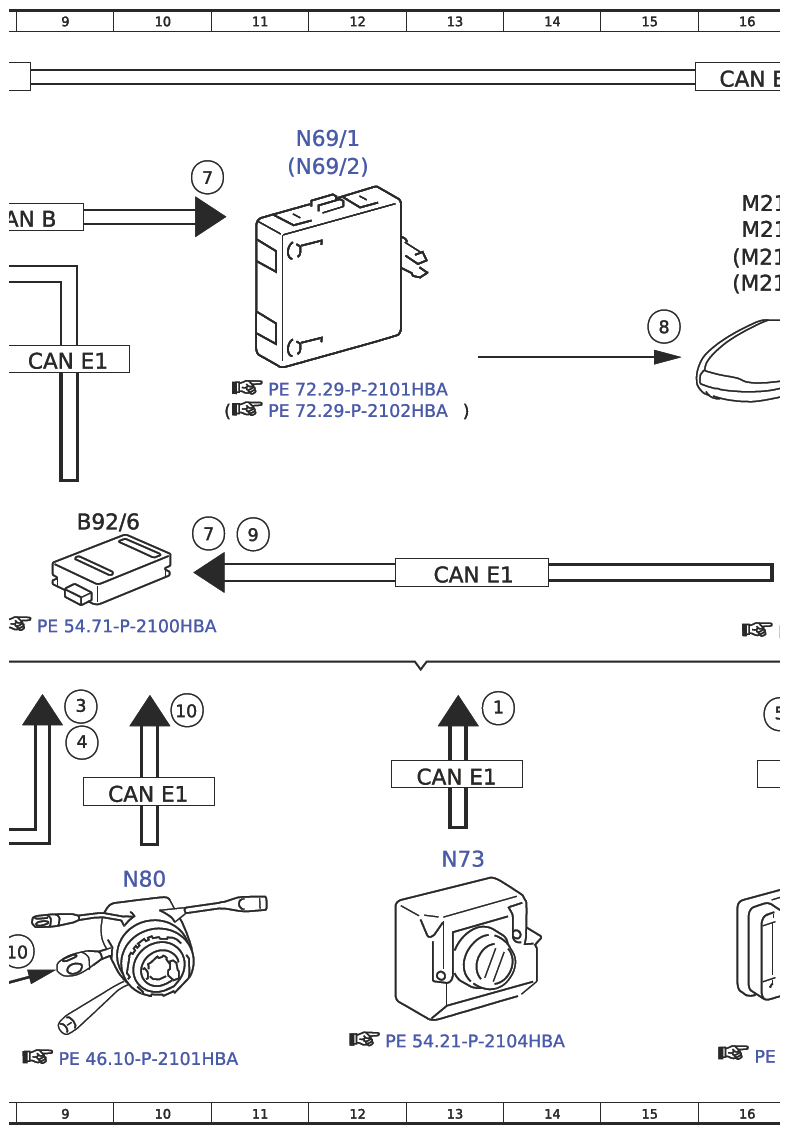

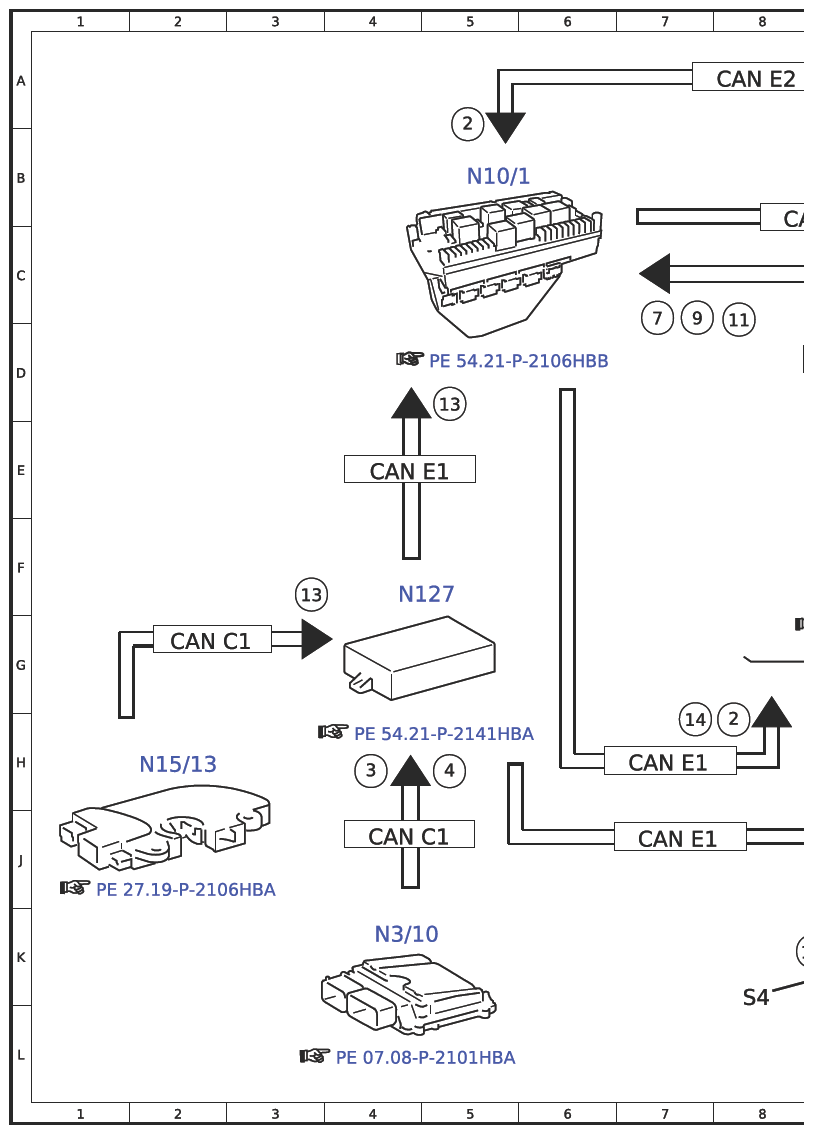

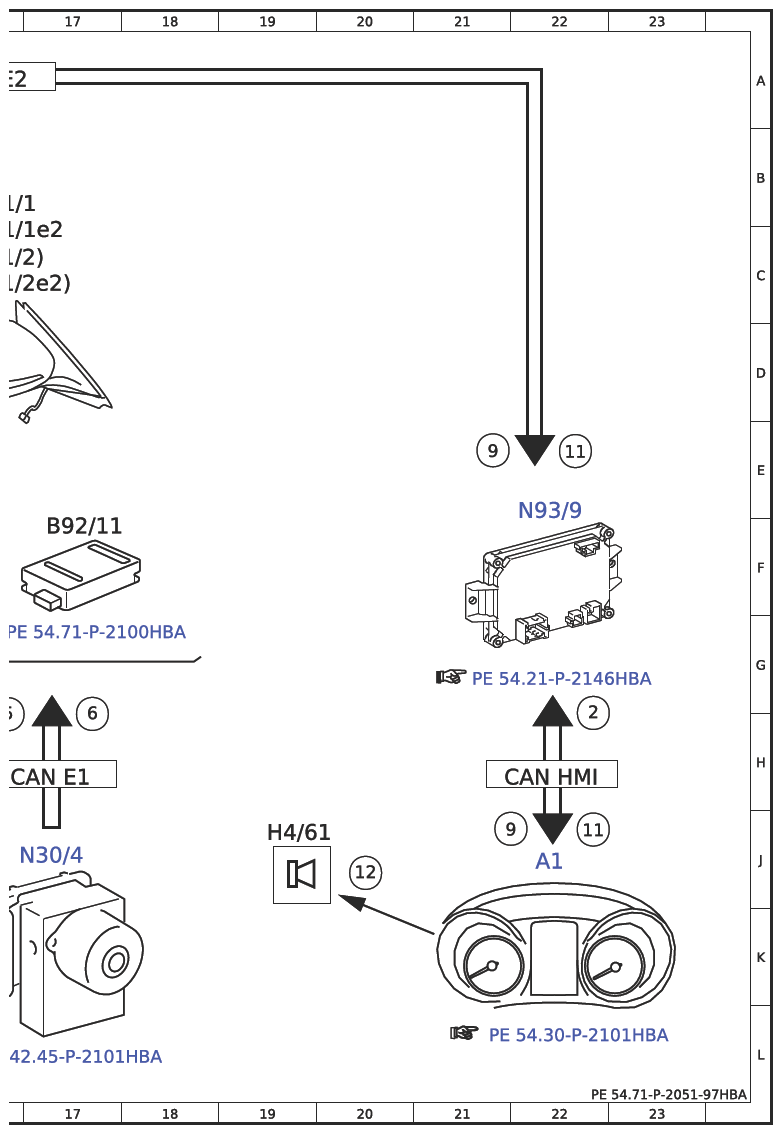

Electrical Function Schematic, Blind Spot Assistant - PE54.71-P-2051-97HBA
Model 190 up to 11/30/18
up to model year 2019
With Code 22P (Lane tracking package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13H |
| 10 | Combination switch, status | 8K |
| 10 | Combination switch, status | 10H |
| 11 | Warning tone, request | 22E |
| 11 | Warning tone, request | 22J |
| 11 | Warning tone, request | 8D |
| 12 | Speaker, actuation | 20J |
| 13 | Gear range, status | 3F |
| 13 | Gear range, status | 5D |
| 14 | Reverse gear engaged, signal | 7H |
| 2 | Blind spot assist, status | 22H |
| 2 | Blind spot assist, status | 5B |
| 2 | Blind spot assist, status | 8H |
| 3 | Engine running, signal | 9G |
| 3 | Engine running, signal | 4H |
| 4 | Drivetrain operational, signal | 9H |
| 4 | Drivetrain operational, signal | 5H |
| 5 | Wheel rotation direction, signal | 16H |
| 6 | Wheel speed, signal | 17H |
| 7 | Blind spot assist warning lamp, request | 7D |
| 7 | Blind spot assist warning lamp, request | 10F |
| 7 | Blind spot assist warning lamp, request | 10B |
| 8 | Blind Spot Assist warning lamp, actuation | 15D |
| 9 | Instrument cluster message, request | 21E |
| 9 | Instrument cluster message, request | 21J |
| 9 | Instrument cluster message, request | 11F |
| 9 | Instrument cluster message, request | 7D |
| A1 | Instrument cluster | 22J |
| B92/11 | Left outer rear bumper integrated radar sensor | 17F |
| B92/6 | Right outer rear bumper integrated radar sensor | 9F |
| CAN B | Interior CAN | 8C |
| CAN C1 | Drivetrain CAN | 2G |
| CAN C1 | Drivetrain CAN | 4J |
| CAN E1 | Chassis CAN 1 | 13F |
| CAN E1 | Chassis CAN 1 | 4E |
| CAN E1 | Chassis CAN 1 | 10H |
| CAN E1 | Chassis CAN 1 | 13H |
| CAN E1 | Chassis CAN 1 | 17H |
| CAN E1 | Chassis CAN 1 | 7J |
| CAN E1 | Chassis CAN 1 | 9D |
| CAN E1 | Chassis CAN 1 | 7H |
| CAN E2 | Chassis CAN 2 | 16A |
| CAN E2 | Chassis CAN 2 | 8A |
| CAN HMI | User interface CAN | 22H |
| H4/61 | Instrument cluster speaker | 19J |
| M21/1 | Left outside mirror | 16B |
| M21/1e2 | Left Blind Spot Assist warning lamp | 16C |
| M21/2 | Right outside mirror | 16C |
| M21/2e2 | Right Blind Spot Assist warning lamp | 16C |
| N10/1 | Front SAM control unit with fuse and relay module | 5B |
| N127 | Drivetrain control unit | 4F |
| N15/13 | Double clutch transmission control unit | 2H |
| N3/10 | ME-SFI [ME] control unit | 4K |
| N30/4 | Electronic Stability Program control unit | 17J |
| N69/1 | Left door control unit | 12B |
| N69/2 | Right door control unit | 12B |
| N73 | Electronic ignition switch control unit | 13J |
| N80 | Steering column module control unit | 10J |
| N93/9 | AMG gateway control unit | 22E |
| S4 | Combination switch | 8K |
