Electrical Function Schematic Of Parking System - PE54.65-P-2055-97HBB
Model 190.381
With Code 218 (Rear view camera)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 13H |
| 1 | Circuit 15, status | 22K |
| 10 | Front camera button, status | 12F |
| 10 | Front camera button, status | 21K |
| 10 | Front camera button, status | 7F |
| 11 | Front camera status display, request | 10F |
| 11 | Front camera status display, request | 15H |
| 12 | Front camera status display, actuation | 5F |
| 13 | Multifunction steering wheel button group, signal | 24J |
| 13 | Multifunction steering wheel button group, signal | 22D |
| 2 | Steering wheel angle sensor, signal | 24D |
| 3 | Steering wheel angle, signal | 24J |
| 4 | Gear range, status | 10A |
| 4 | Gear range, status | 9E |
| 5 | Reverse gear, status | 12G |
| 5 | Reverse gear, status | 21K |
| 6 | Camera image, signal | 25K |
| 7 | Audio/COMAND display, request | 15H |
| 7 | Audio/COMAND display, request | 18F |
| 8 | Audio/COMAND display, actuation | 17J |
| 9 | High-speed video link video signal data transfer, signal | 20G |
| 9 | High-speed video link video signal data transfer, signal | 16H |
| A26/17 | Head unit | 19F |
| A40/8 | Audio/COMAND display | 16J |
| A74/2 | Lower multifunction steering wheel button group electric controller unit | 18C |

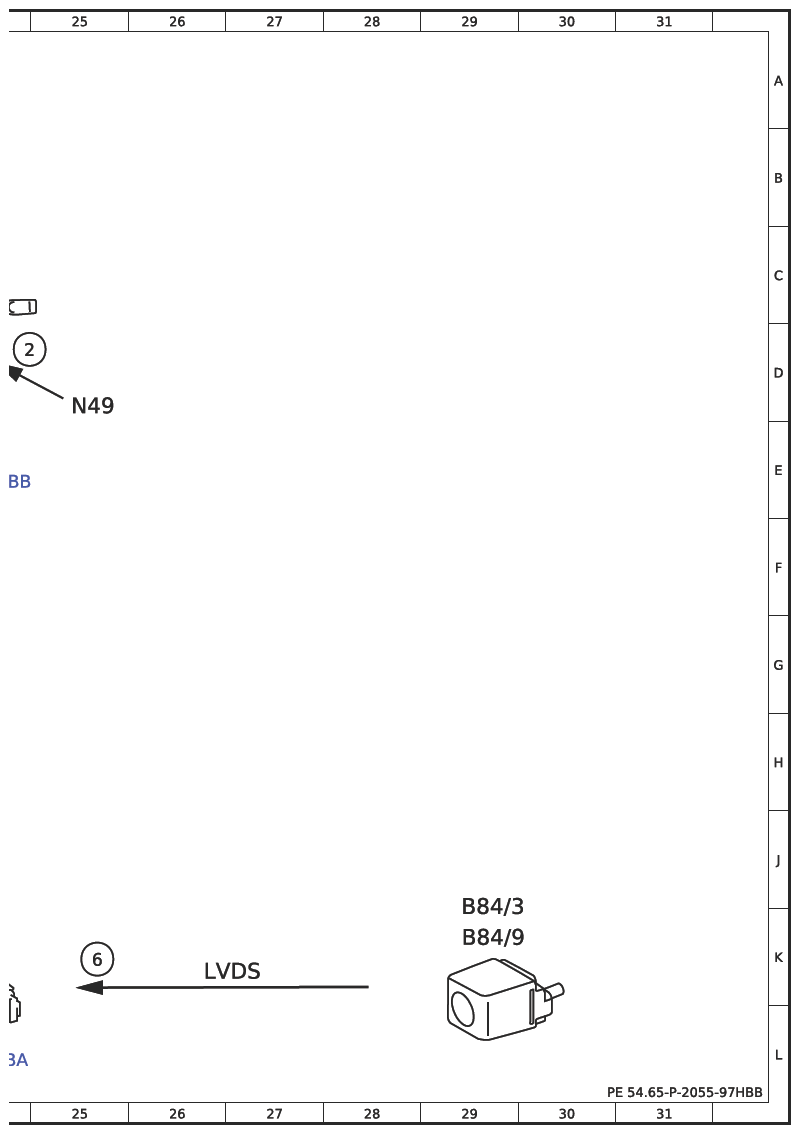

| B84/3 | Backup camera | 29K |
| B84/9 | Front camera | 29K |
| CAN A | Telematics CAN | 18K |
| CAN B | Interior CAN | 11G |
| CAN C1 | Drivetrain CAN | 11B |
| CAN E1 | Chassis CAN 1 | 11K |
| CAN E1 | Chassis CAN 1 | 9D |
| CAN E2 | Chassis CAN 2 | 11F |
| CAN HMI | User interface CAN | 16F |
| CAN LR | Steering wheel CAN | 20D |
| Flex AMG | AMG FlexRay | 23G |
| Flex AMG | AMG FlexRay | 18L |
| HSVL | High-speed video link | 21G |
| HSVL | High-speed video link | 17G |
| LIN 1 | Instrument panel LIN | 6F |
| LVDS | Low voltage differential signal | 26K |
| N10/1 | Front SAM control unit with fuse and relay module | 9F |
| N127 | Drivetrain control unit | 8A |
| N15/13 | Double clutch transmission control unit | 14A |
| N49 | Steering wheel angle sensor | 25D |

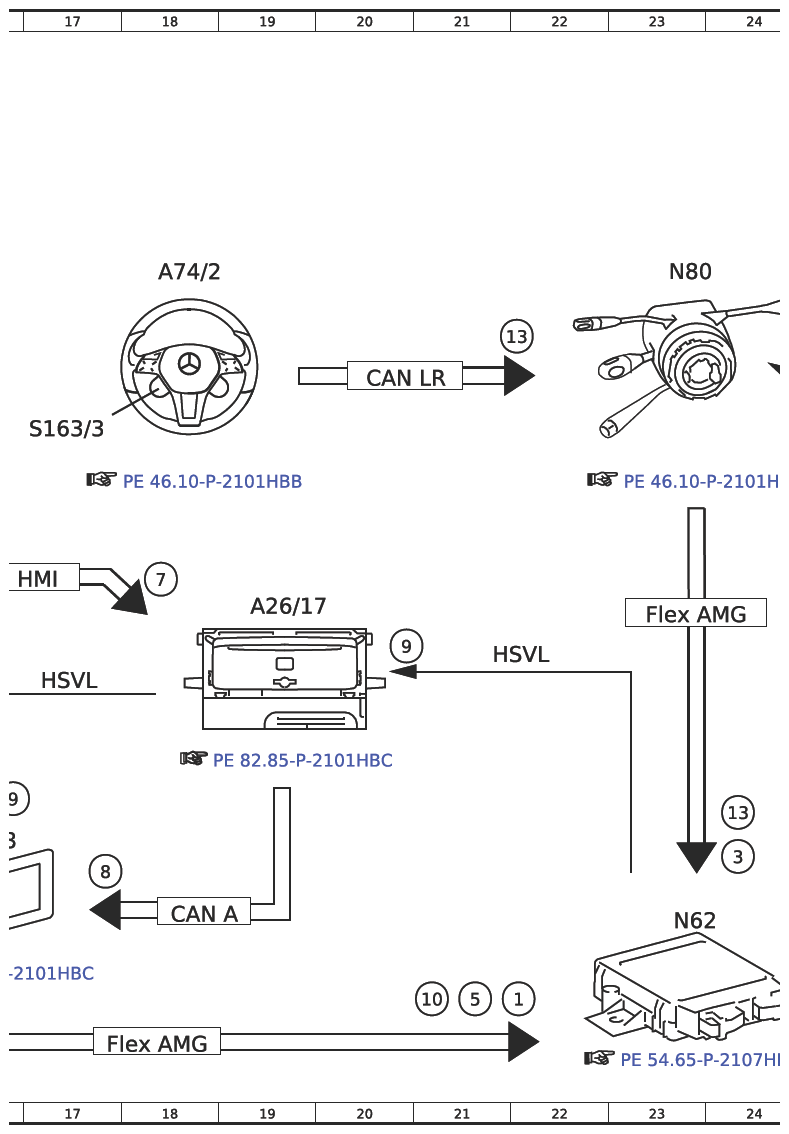

| N62 | Parking system control unit | 23K |
| N72/1 | Upper control panel control unit | 3F |

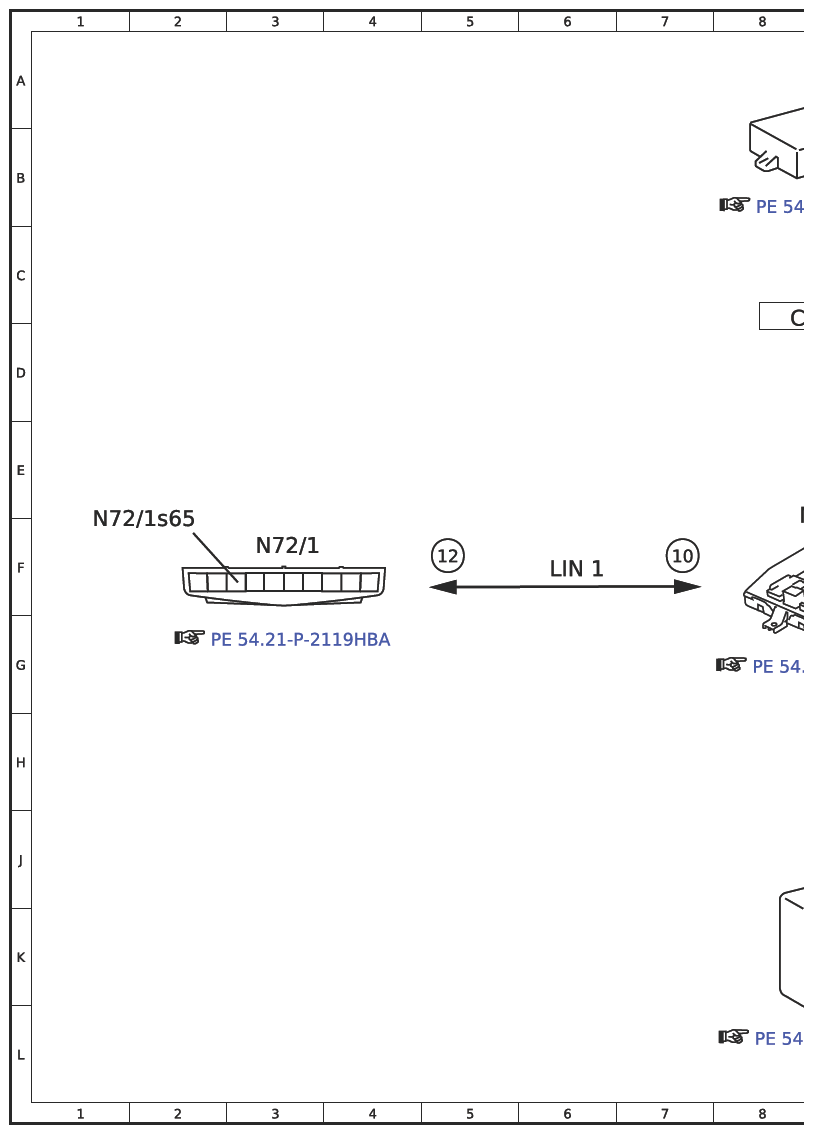

| N72/1s65 | Front camera button | 1F |
| N73 | Electronic ignition switch control unit | 9J |
| N80 | Steering column module control unit | 23C |

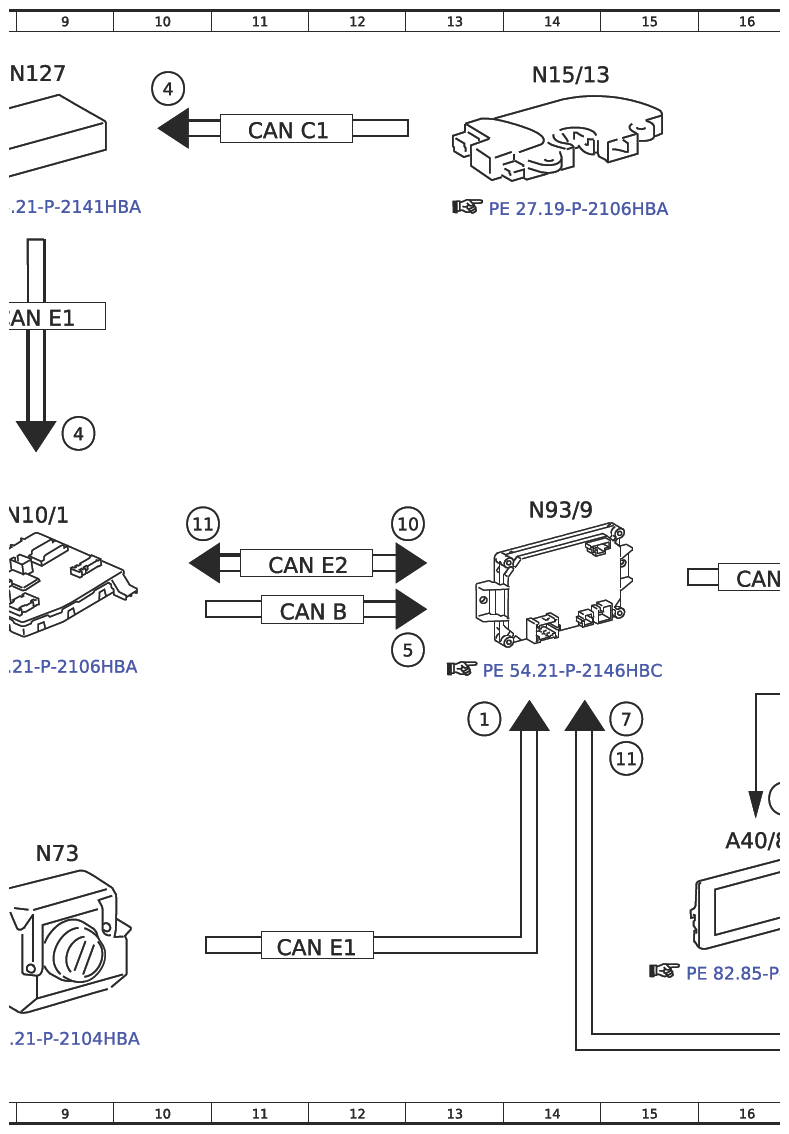

| N93/9 | AMG gateway control unit | 14E |
| S163/3 | Lower multifunction steering wheel button group 1 | 17E |
