Fuse And Relay Modules - SN54.15-P-0001-02S
Model All (CAR)

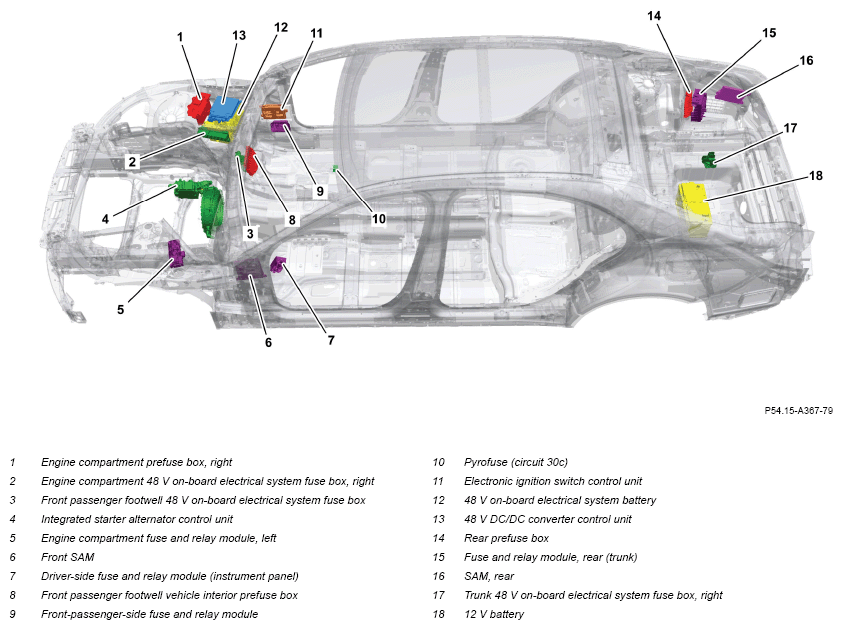

Fuse and relay module, shown on Model 223
FOLLOWING FURTHER INFORMATION IS AVAILABLE IN WORKSHOP INFORMATION SYSTEM (WIS)
| Record title | Validity | Document no. |
|---|---|---|
| Remove/install front pre-fuse box | Model 223 | AR54.15-P-1330S |
| Model 206 | AR54.15-P-1330WT | |
| Remove/install rear pre-fuse box | Model 223 | AR54.15-P-1340S |
| Model 206 with code B01 | AR54.15-P-1340WT | |
| Remove/install interior pre-fuse box | Model 223 | AR54.15-P-1350S |
| Model 206 | AR54.15-P-1350WT | |
| Remove/install fuse and relay module in rear | Model 223 | AR54.15-P-0001S |
| Model 206 | AR54.15-P-0001WT | |
| Remove/install driver's side fuse and relay module | Model 223 | AR54.15-P-0003S |
| Model 206 | AR54.15-P-0003WT | |
| Remove/install front passenger side fuse and relay module | Model 223 | AR54.15-P-0004S |
| Model 206 | AR54.15-P-0004WT | |
| Remove/install fuse and relay module for engine compartment | Model 223 | AR54.15-P-0005S |
| Model 206 | AR54.15-P-0005WT | |
| Remove/install fuse box for 48 V on-board electrical system in engine compartment | Model 223 with code B01 | AR54.15-P-0011S |
| Model 206 with code B01 | AR54.15-P-0011WT | |
| Remove/install fuse box of secondary 12 V on-board electrical system | Model 223 with code 200 or code 503 | AR54.15-P-0009S |
| Check on-board electrical system battery for 48 volt on-board electrical system, when removed, for transportability | Vehicles with code B01 | AR54.10-P-0048ME |
| Service Information bulletin: transport mode | - | SI54.00-P-0004A |
| Service Information bulletin: battery maintenance | - | SI54.10-P-0024A |
| Service Information bulletin: maintaining on-board electrical system voltage in exhibition and demonstration vehicles | - | SI54.10-P-0038A |
