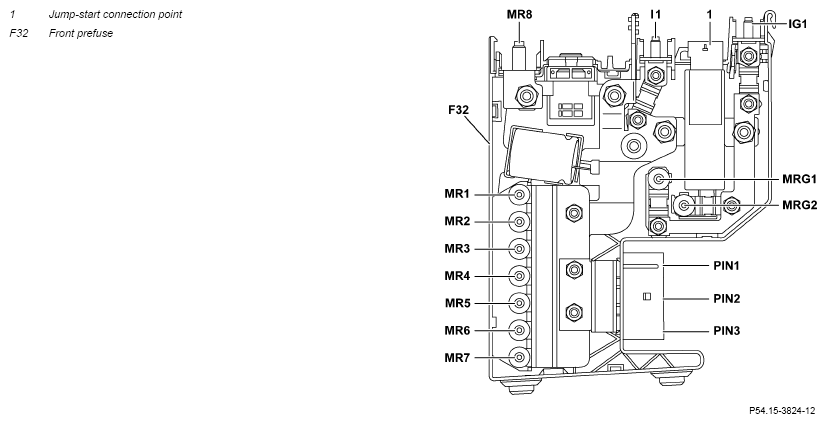

Fuse Assignment Of Front Pre-Fuse Box - GF54.15-P-1256-07RR
Model 190
| Connection | Fuse | Circuit | Wire identification | Fused | Fuse rating (A) |
|---|---|---|---|---|---|
| MR8 | Pyrofuse 150 (F32f150) | 30 | 35.0 BK | Alternator (G2) | 350 |
| MR1 | Pre-Fuse 151 (F32f151) | 30 | - | Spare | - |
| MR2 | Pre-Fuse 152 (F32f152) | 30 | - | Spare | - |
| MR3 | Pre-Fuse 153 (F32f153) | 30 | - | Spare | - |
| MR4 | Pre-Fuse 154 (F32f154) | 30 | 12.0 RD | Fan motor (M4/7) | 100 |
| MR5 | Pre-Fuse 155 (F32f155) | 30 | - | Spare | - |
| MR6 | Pre-Fuse 156 (F32f156) | 30 | 6.0 RD | Valid Up To 31.05.2016: Front SAM control unit with fuse and relay module (N10/1) |
60 |
| Valid As Of 01.06.2016: Electronic Stability Program control unit (N30/4) |
|||||
| MR7 | Pre-Fuse 157 (F32f157) | 30 | 16.0 RDWH | Front SAM control unit with fuse and relay module (N10/1) | 150 |
| PIN1 | Pre-Fuse 158 (F32f158) | 30 | 6.0 RD | Valid Up To 31.05.2016: Electronic Stability Program control unit (N30/4) | 50 |
| Valid As Of 01.05.2017 With Code M030 (GT R version): Left rear axle steering control unit (N68/3) |
|||||
| PIN2 | Pre-Fuse 159 (F32f159) | 30 | 6.0 RD | Valid As Of 01.05.2017 With Code M030 (GT R version): Right rear axle steering control unit (N68/4) |
50 |
| PIN3 | Pre-Fuse 160 (F32f160) | 30 | 6.0 RD | Valid As Of 01.06.2016: Front SAM control unit with fuse and relay module (N10/1) |
60 |
| MRG1 | Pre-Fuse 161 (F32f161) | 30 | - | Spare | - |
| MRG2 | Pre-Fuse 162 (F32f162) | 30g | 10.0 RD | Front SAM control unit with fuse and relay module (N10/1) | 100 |
| IG1 | Pre-Fuse 163 (F32f163) | 30g | 16.0 RD | Rear SAM control unit with fuse and relay module (N10/2) | 150 |
| I1 | Pre-Fuse 164 (F32f164) | 30 | 16.0 RD | Rear SAM control unit with fuse and relay module (N10/2) | 100 |
