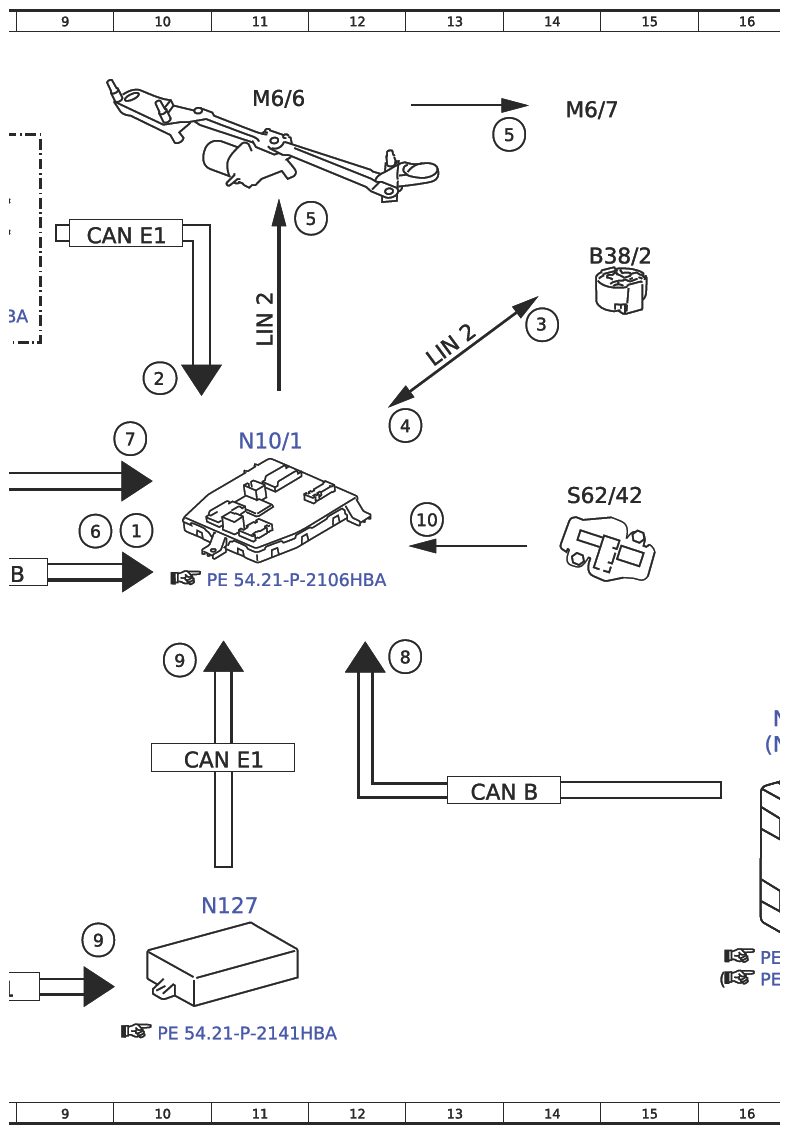

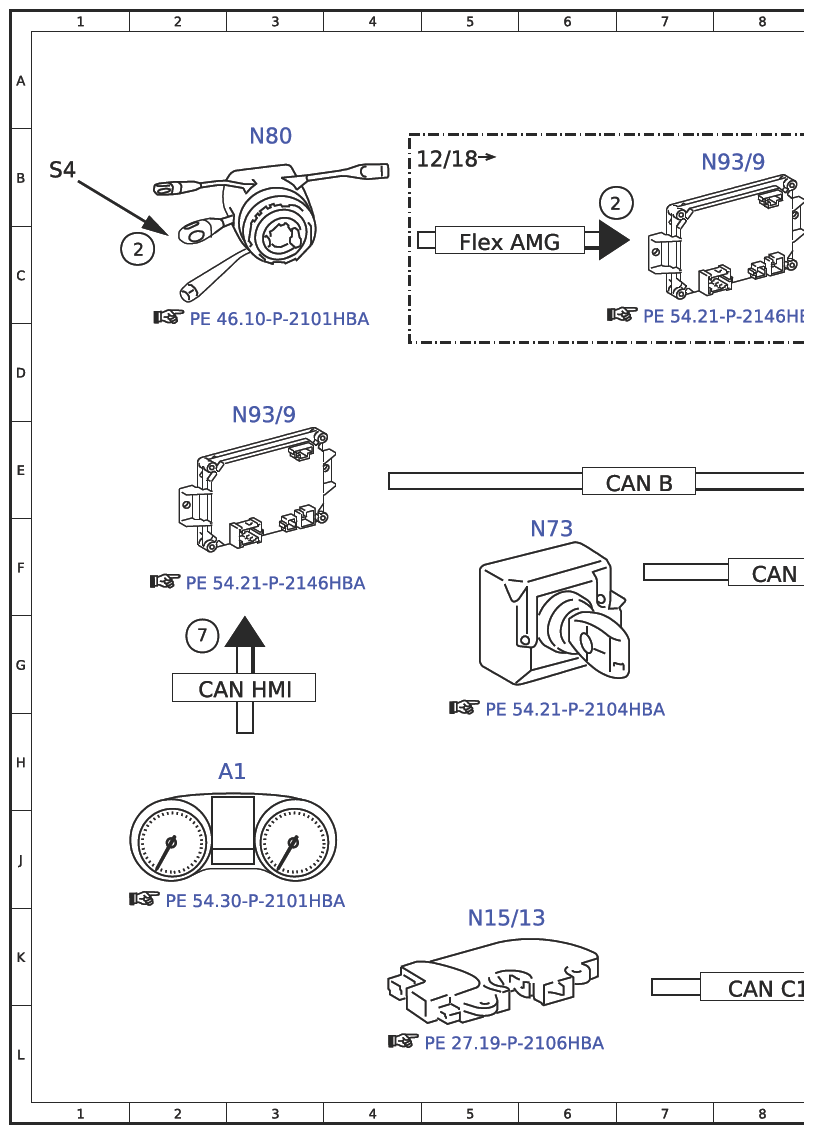

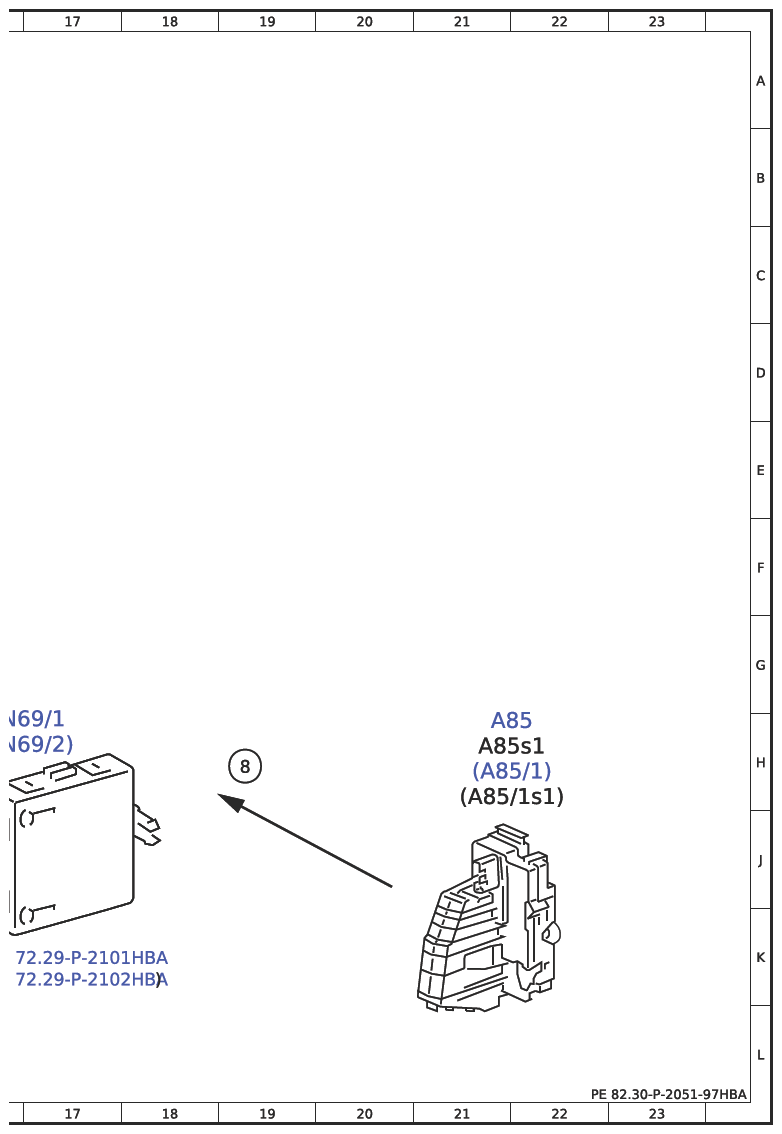

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97HBA
Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10E |
| 10 | Engine hood contact switch, status | 13E |
| 2 | Combination switch, status | 10D |
| 2 | Combination switch, status | 2C |
| 2 | Combination switch, status | 7B |
| 3 | Wipe sensitivity, signal | 14D |
| 4 | Wipe request, signal | 13E |
| 5 | Wiper motor, actuation | 13B |
| 5 | Wiper motor, actuation | 14B |
| 6 | Circuit 50, status | 9F |
| 7 | Vehicle speed, signal | 2G |
| 7 | Vehicle speed, signal | 10E |
| 8 | Door rotary tumbler switch, status | 13G |
| 8 | Door rotary tumbler switch, status | 19H |
| 9 | Gear range, status | 9K |
| 9 | Gear range, status | 10G |
| A1 | Instrument cluster | 3H |
| A85 | Left door lock | 21H |
| A85/1 | Right door lock | 21H |
| A85/1S1 | Right door lock rotary tumbler switch | 21H |
| A85s1 | Left door lock rotary tumbler switch | 21H |
| B38/2 | Rain/light sensor | 15C |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 8F |
| CAN C1 | Drive train CAN | 8K |
| CAN E1 | Chassis CAN 1 | 9C |
| CAN E1 | Chassis CAN 1 | 10H |
| CAN HMI | User interface CAN | 3G |
| Flex AMG | AMG FlexRay | 5C |
| LIN 2 | Wiper/inside rearview mirror LIN | 11C |
| LIN 2 | Wiper/inside rearview mirror LIN | 13D |
| M6/6 | Master wiper motor | 11A |
| M6/7 | Slave wiper motor | 14A |
| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N127 | Drivetrain control unit | 10K |
| N15/13 | Double clutch transmission control unit | 5K |
| N69/1 | Left door control unit | 16H |
| N69/2 | Right door control unit | 16H |
| N73 | Electronic ignition switch control unit | 6F |
| N80 | Steering column module control unit | 3B |
| N93/9 | AMG gateway control unit | 3E |
| N93/9 | AMG gateway control unit | 7B |
| S4 | Combination switch | 1B |
| S62/42 | Right engine hood contact switch | 14E |
