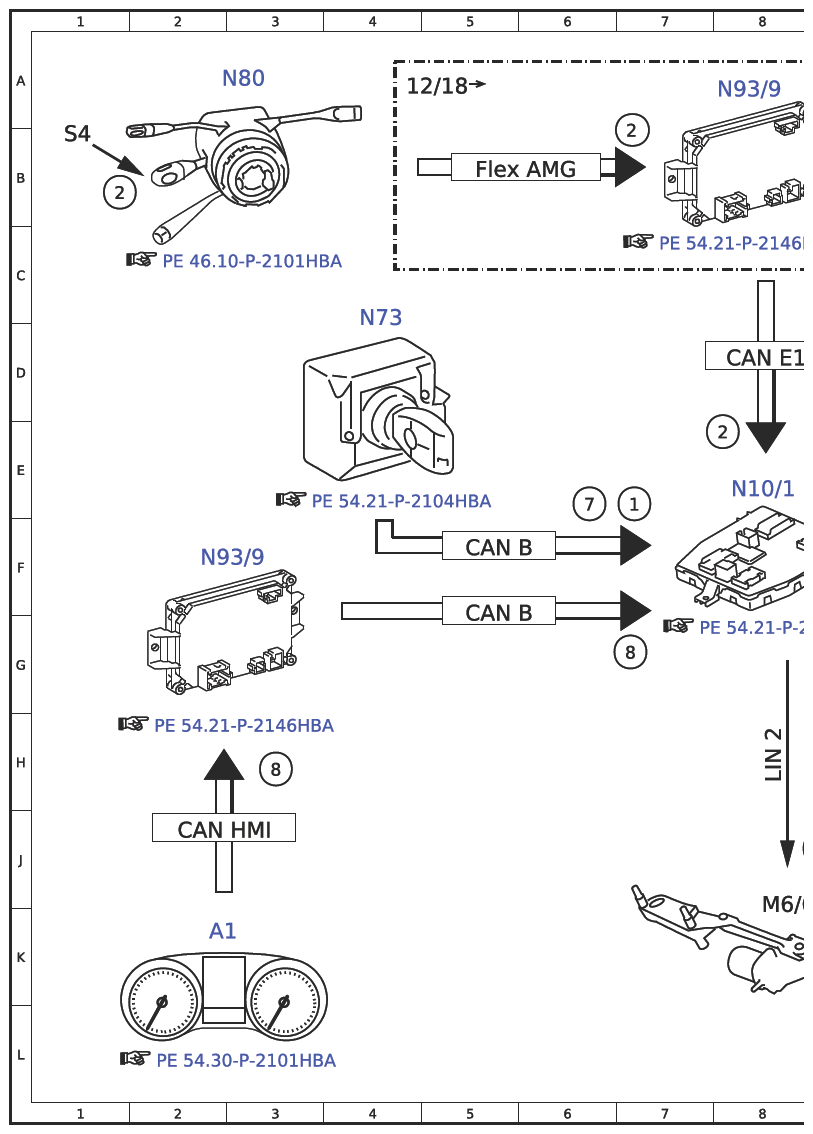

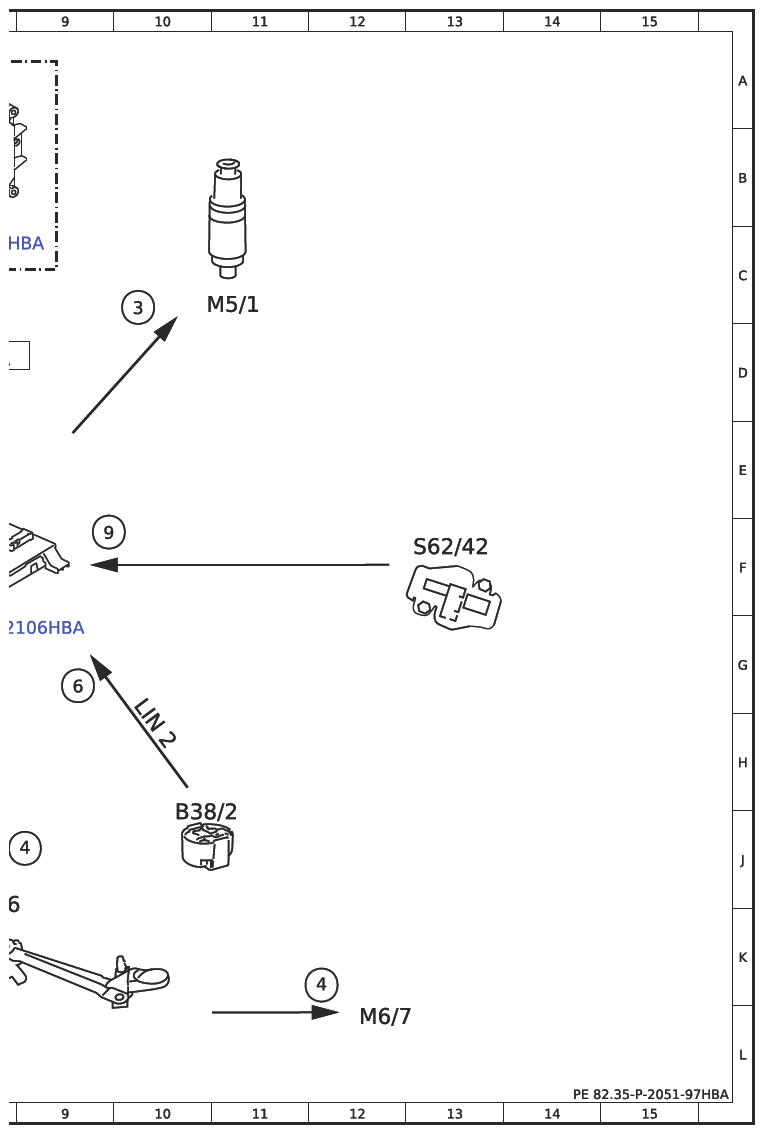

Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97HBA
Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7E |
| 2 | Combination switch, status | 8E |
| 2 | Combination switch, status | 1B |
| 2 | Combination switch, status | 7B |
| 3 | Windshield washer system pump, actuation | 10C |
| 4 | Wiper motor, actuation | 9J |
| 4 | Wiper motor, actuation | 12K |
| 6 | Wipe request, signal | 9G |
| 7 | Circuit 50, status | 6E |
| 8 | Vehicle speed, signal | 3H |
| 8 | Vehicle speed, signal | 7G |
| 9 | Engine hood contact switch, status | 9F |
| A1 | Instrument cluster | 2K |
| B38/2 | Rain/light sensor | 10J |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 5G |
| CAN E1 | Chassis CAN 1 | 8D |
| CAN HMI | User interface CAN | 2J |
| Flex AMG | AMG FlexRay | 5B |
| LIN 2 | Wiper/inside rearview mirror LIN | 8H |
| LIN 2 | Wiper/inside rearview mirror LIN | 10H |
| M5/1 | Windshield washer system pump | 10C |
| M6/6 | Master wiper motor | 8K |
| M6/7 | Slave wiper motor | 12L |
| N10/1 | Front SAM control unit with fuse and relay module | 8E |
| N73 | Electronic ignition switch control unit | 4D |
| N80 | Steering column module control unit | 2A |
| N93/9 | AMG gateway control unit | 2F |
| N93/9 | AMG gateway control unit | 8A |
| S4 | Combination switch | 1B |
| S62/42 | Right engine hood contact switch | 13F |
