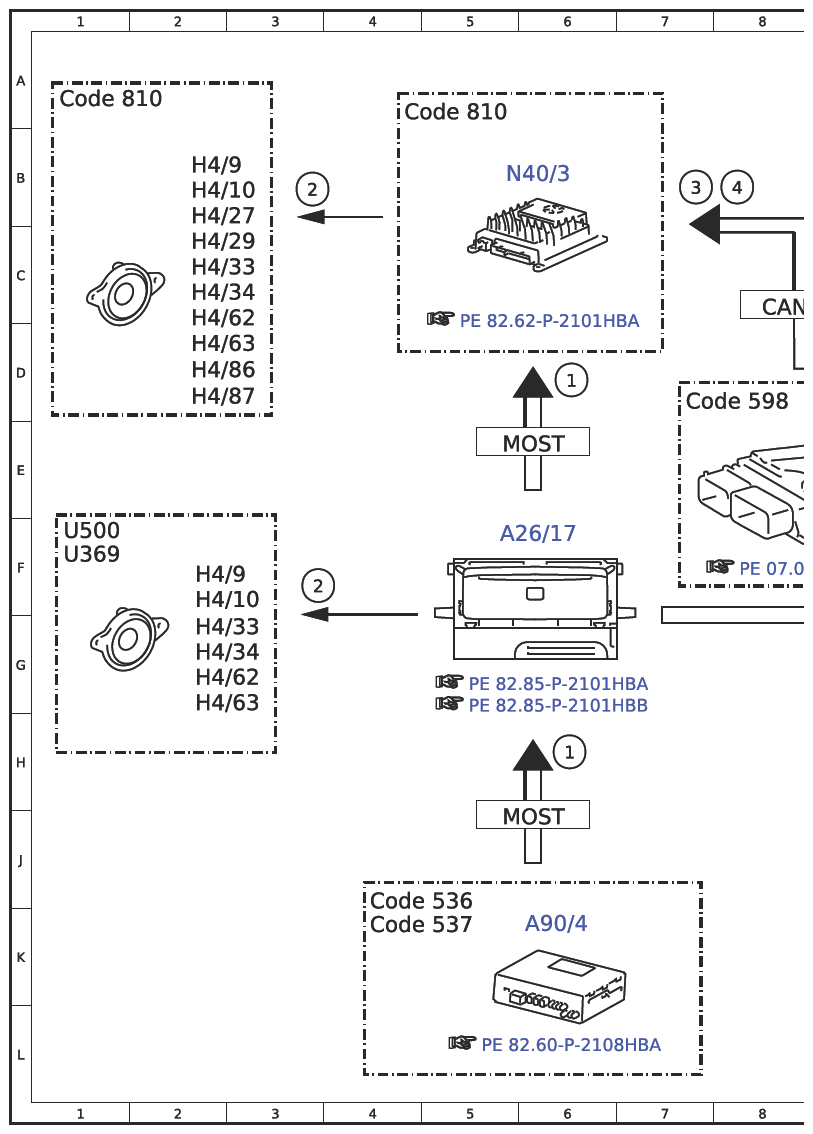

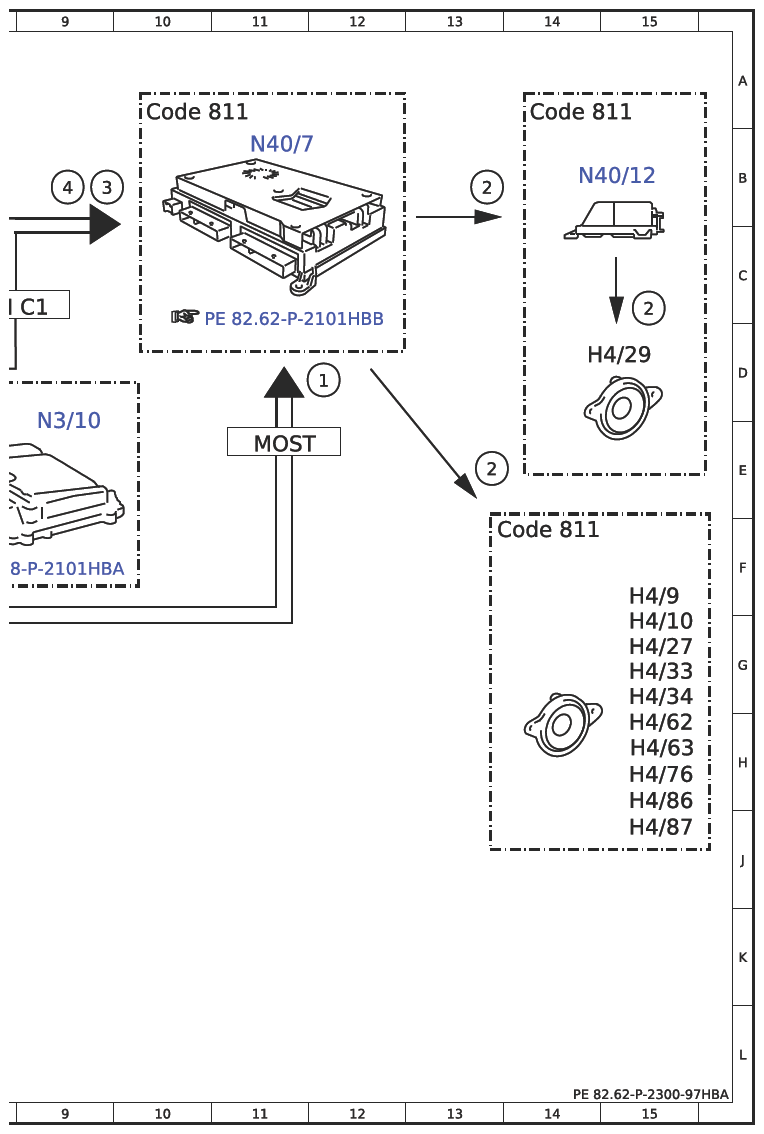

Electrical Function Schematic For Speaker System Function - PE82.62-P-2300-97HBA
Model 190 up to 11/30/18
up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Audio, signal | 6H |
| 1 | Audio, signal | 6D |
| 1 | Audio, signal | 12D |
| 2 | Speaker, actuation | 3B |
| 2 | Speaker, actuation | 3F |
| 2 | Speaker, actuation | 13E |
| 2 | Speaker, actuation | 13B |
| 2 | Speaker, actuation | 15C |
| 3 | Engine speed, signal | 7B |
| 3 | Engine speed, signal | 9B |
| 4 | Engine load, signal | 8B |
| 4 | Engine load, signal | 9B |
| A26/17 | Head unit | 6F |
| A90/4 | Tuner unit | 6K |
| CAN C1 | Drive train CAN | 8C |
| Code 536 | SIRIUS satellite radio | 4K |
| Code 537 | Digital radio (DAB) | 4K |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 7D |
| Code 810 | Sound system | 1A |
| Code 810 | Sound system | 4A |
| Code 811 | Advanced sound system | 10A |
| Code 811 | Advanced sound system | 14A |
| Code 811 | Advanced sound system | 13F |
| H4/10 | Right front footwell woofer | 2F |
| H4/10 | Right front footwell woofer | 2B |
| H4/10 | Right front footwell woofer | 15G |
| H4/27 | Center instrument panel midrange speaker | 2B |
| H4/27 | Center instrument panel midrange speaker | 15G |
| H4/29 | Rear woofer | 2C |
| H4/29 | Rear woofer | 15D |
| H4/33 | Left instrument panel tweeter | 2G |
| H4/33 | Left instrument panel tweeter | 2C |
| H4/33 | Left instrument panel tweeter | 15G |
| H4/34 | Right instrument panel tweeter | 2G |
| H4/34 | Right instrument panel tweeter | 2C |
| H4/34 | Right instrument panel tweeter | 15G |
| H4/62 | Left rear surround sound system midrange speaker | 2G |
| H4/62 | Left rear surround sound system midrange speaker | 2D |
| H4/62 | Left rear surround sound system midrange speaker | 15H |
| H4/63 | Right rear surround sound system midrange speaker | 2G |
| H4/63 | Right rear surround sound system midrange speaker | 2D |
| H4/63 | Right rear surround sound system midrange speaker | 15H |
| H4/76 | Center instrument panel tweeter | 15H |
| H4/86 | Left door midrange speaker | 2D |
| H4/86 | Left door midrange speaker | 15H |
| H4/87 | Right door midrange speaker | 2D |
| H4/87 | Right door midrange speaker | 15J |
| H4/9 | Left front footwell woofer | 2F |
| H4/9 | Left front footwell woofer | 2B |
| H4/9 | Left front footwell woofer | 15F |
| MOST | Media Oriented System Transport | 6E |
| MOST | Media Oriented System Transport | 6J |
| MOST | Media Oriented System Transport | 11E |
| N3/10 | ME-SFI [ME] control unit | 9E |
| N40/12 | Woofer amplifier | 15B |
| N40/3 | Sound system amplifier control unit | 6B |
| N40/7 | Advanced sound system amplifier control unit | 11B |
| U369 | Valid without code 811 Extended sound system | 1F |
| U500 | Not valid for sound system | 1F |
