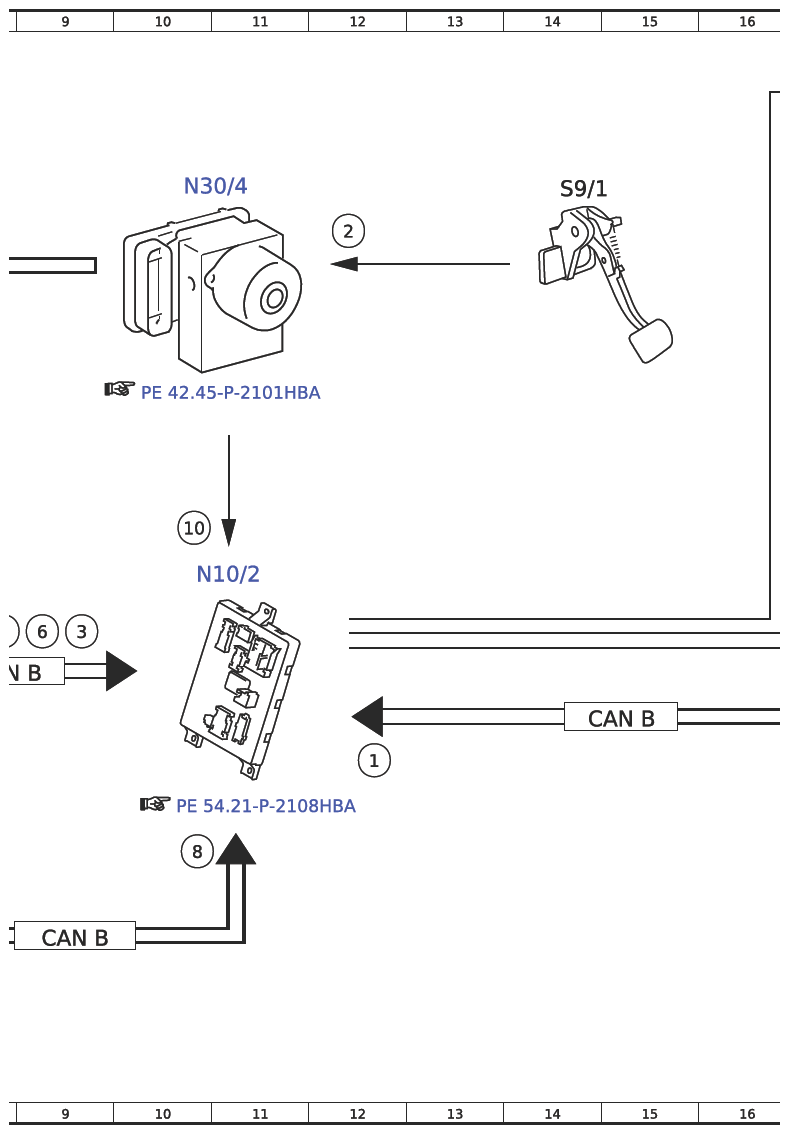

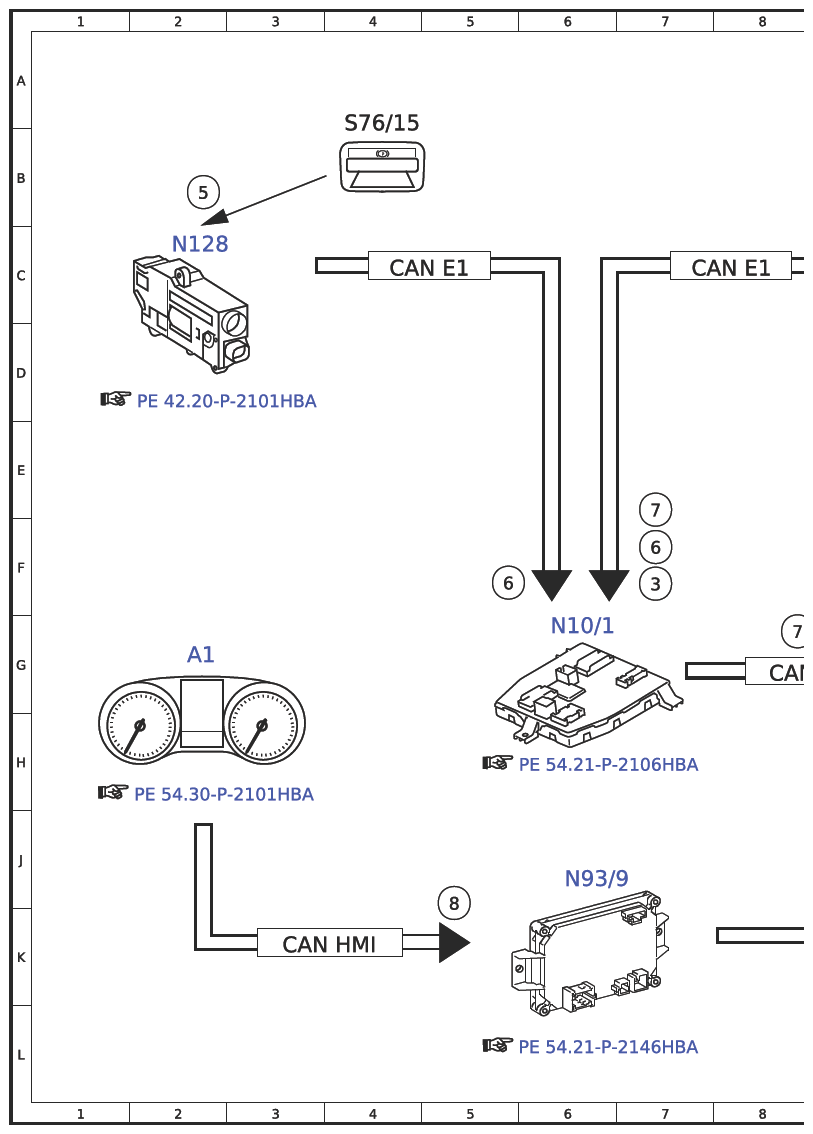

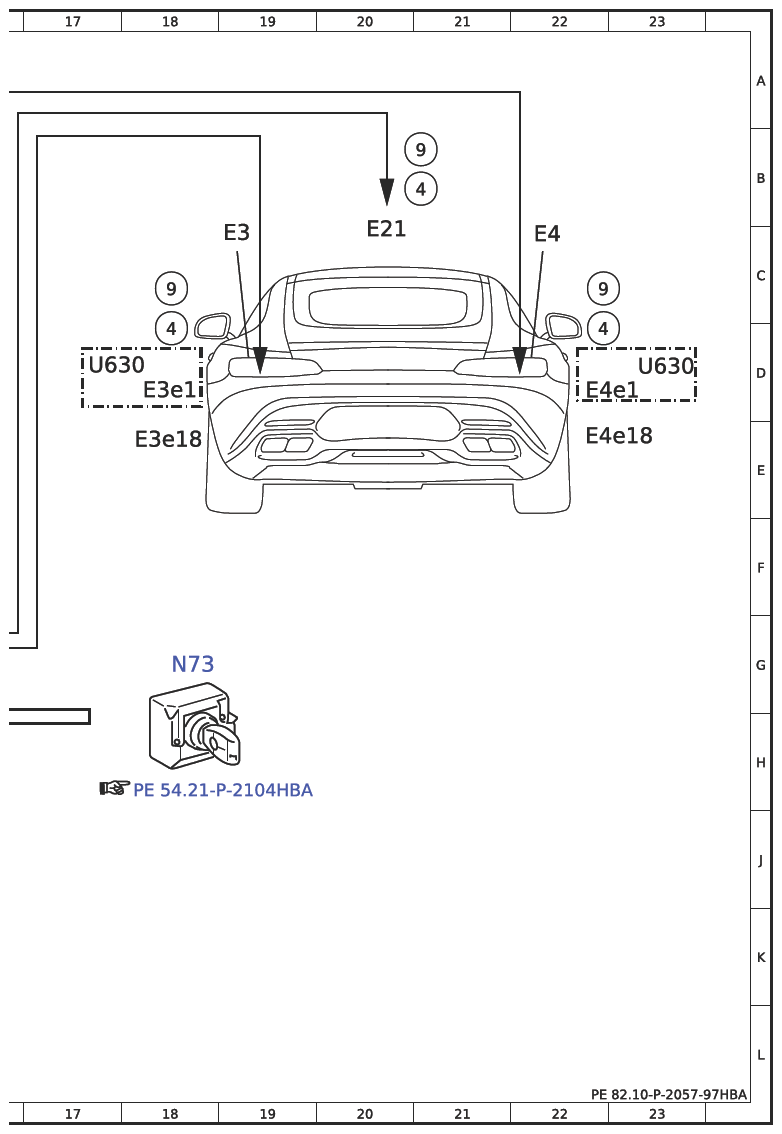

Electrical Function Schematic For Brake Light Actuation - PE82.10-P-2057-97HBA
Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12H |
| 10 | Circuit 54, status | 10F |
| 2 | Brake light switch, status | 12C |
| 3 | Service brake, status | 7F |
| 3 | Service brake, status | 9G |
| 4 | Brake lights, actuation | 18D |
| 4 | Brake lights, actuation | 22D |
| 4 | Brake lights, actuation | 21B |
| 5 | Electric parking brake switch, status | 2B |
| 6 | Brake lights, request | 9G |
| 6 | Brake lights, request | 7F |
| 6 | Brake lights, request | 5F |
| 7 | Emergency stop, signal | 7E |
| 7 | Emergency stop, signal | 8G |
| 8 | Vehicle speed, signal | 5K |
| 8 | Vehicle speed, signal | 10J |
| 9 | Flashing brake lights, actuation | 18C |
| 9 | Flashing brake lights, actuation | 22C |
| 9 | Flashing brake lights, actuation | 21B |
| A1 | Instrument cluster | 2G |
| CAN B | Interior CAN | 8G |
| CAN B | Interior CAN | 15H |
| CAN B | Interior CAN | 9K |
| CAN E1 | Chassis CAN 1 | 8C |
| CAN E1 | Chassis CAN 1 | 4C |
| CAN HMI | User interface CAN | 3K |
| E21 | Center stop lamp | 20C |
| E3 | Left rear lamp unit | 19C |
| E3e1 | Left rear turn signal lamp | 18D |
| E3e18 | Left tail lamp | 18E |
| E4 | Right rear lamp unit | 22C |
| E4e1 | Right rear turn signal lamp | 22D |
| E4e18 | Right tail lamp | 22E |
| N10/1 | Front SAM control unit with fuse and relay module | 6G |
| N10/2 | Rear SAM control unit with fuse and relay module | 11F |
| N128 | Electric parking brake control unit | 2C |
| N30/4 | Electronic Stability Program control unit | 10B |
| N73 | Electronic ignition switch control unit | 18G |
| N93/9 | AMG gateway control unit | 6J |
| S76/15 | Electric parking brake switch | 4B |
| S9/1 | Stop lamp switch | 14B |
| U630 | Valid for USA and Canada | 17D |
| U630 | Valid for USA and Canada | 23D |
