Electrical Function Diagram For Voice Connection Between Vehicle And Service Center, Function - PE82.95-P-2069-97HBA
Model 190
with code 348 (Emergency call/assistant system)

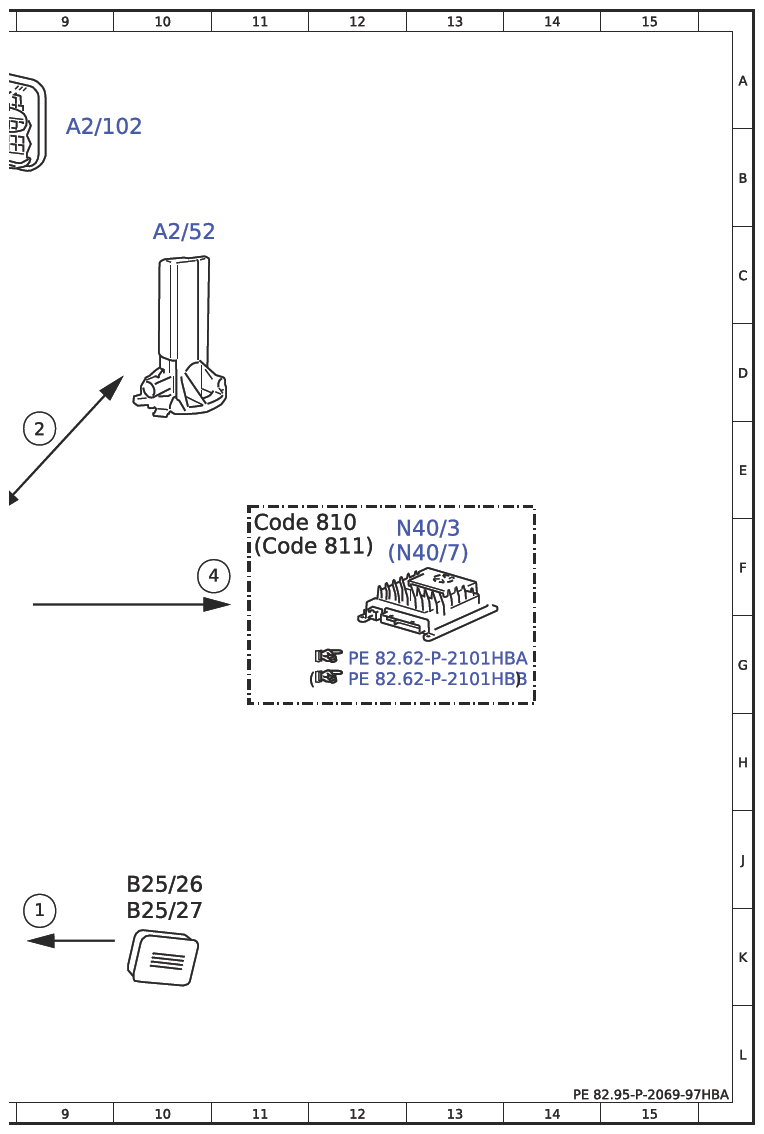

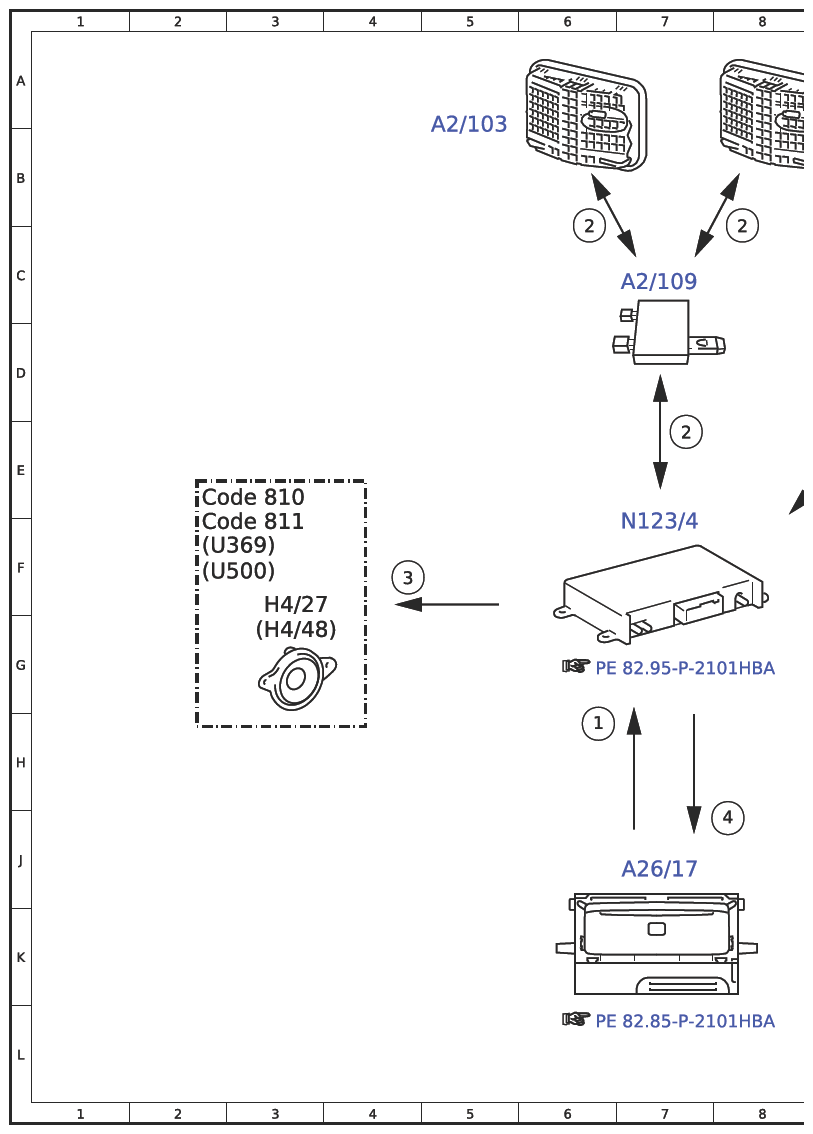

| Code: | Designation: | Position: |
|---|---|---|
| 1 | Voice input, signal | 6H |
| 1 | Voice input, signal | 9K |
| 2 | Telephone, signal | 7E |
| 2 | Telephone, signal | 8C |
| 2 | Telephone, signal | 6C |
| 2 | Telephone, signal | 9E |
| 3 | Voice output, signal | 4F |
| 4 | Mute function, signal | 8J |
| 4 | Mute function, signal | 11F |
| A2/102 | Left telephone antenna | 9B |
| A2/103 | Right telephone antenna | 5B |
| A2/109 | Telephone antenna splitter | 7C |
| A2/52 | Emergency call system antenna | 10C |
| A26/17 | Head unit | 7J |
| B25/26 | Driver hands-free system microphone | 10J |
| B25/27 | Front passenger hands-free system microphone | 10K |
| Code 810 | Sound system | 11F |
| Code 810 | Sound system | 2E |
| Code 811 | Advanced sound system | 11F |
| Code 811 | Advanced sound system | 2F |
| H4/27 | Center instrument panel midrange speaker | 3F |
| H4/48 | Emergency call speaker | 3G |
| N123/4 | Emergency call system control unit | 7F |
| N40/3 | Sound system amplifier control unit | 13F |
| N40/7 | Advanced sound system amplifier control unit | 13F |
| U369 | Valid without code 811 Extended sound system | 2F |
| U500 | Not valid for sound system | 2F |
