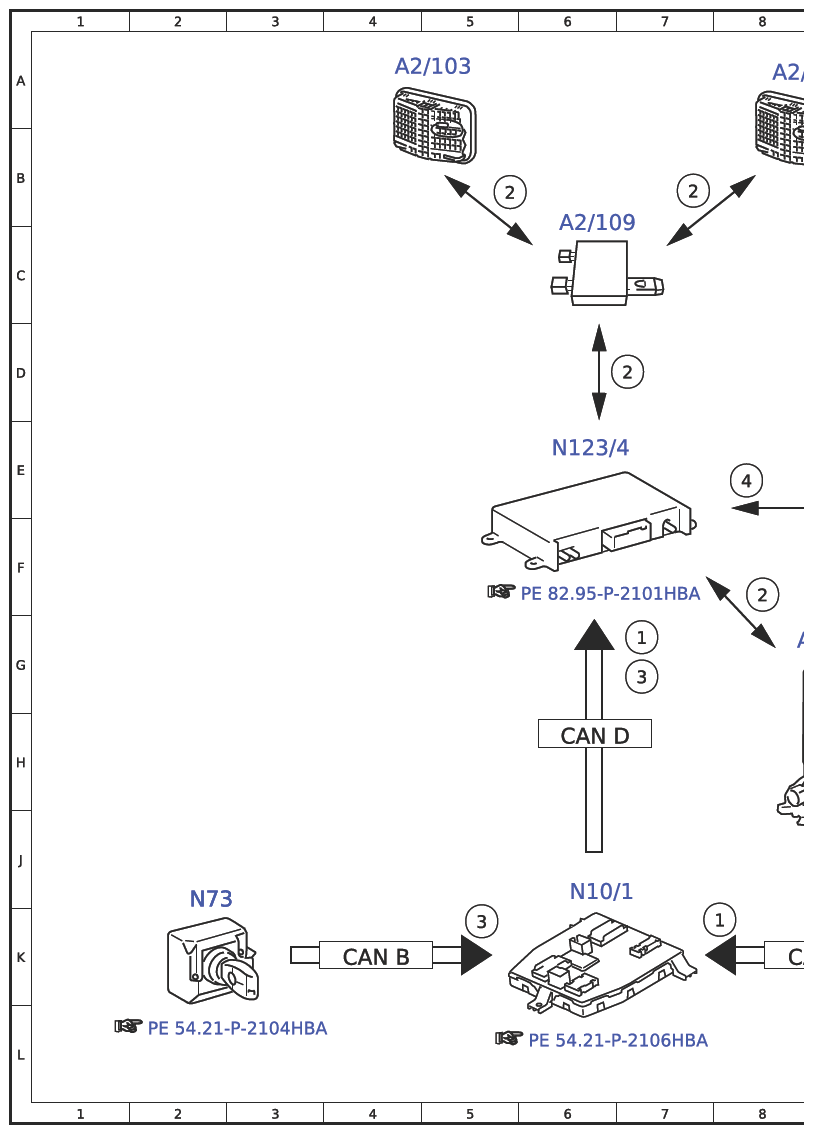

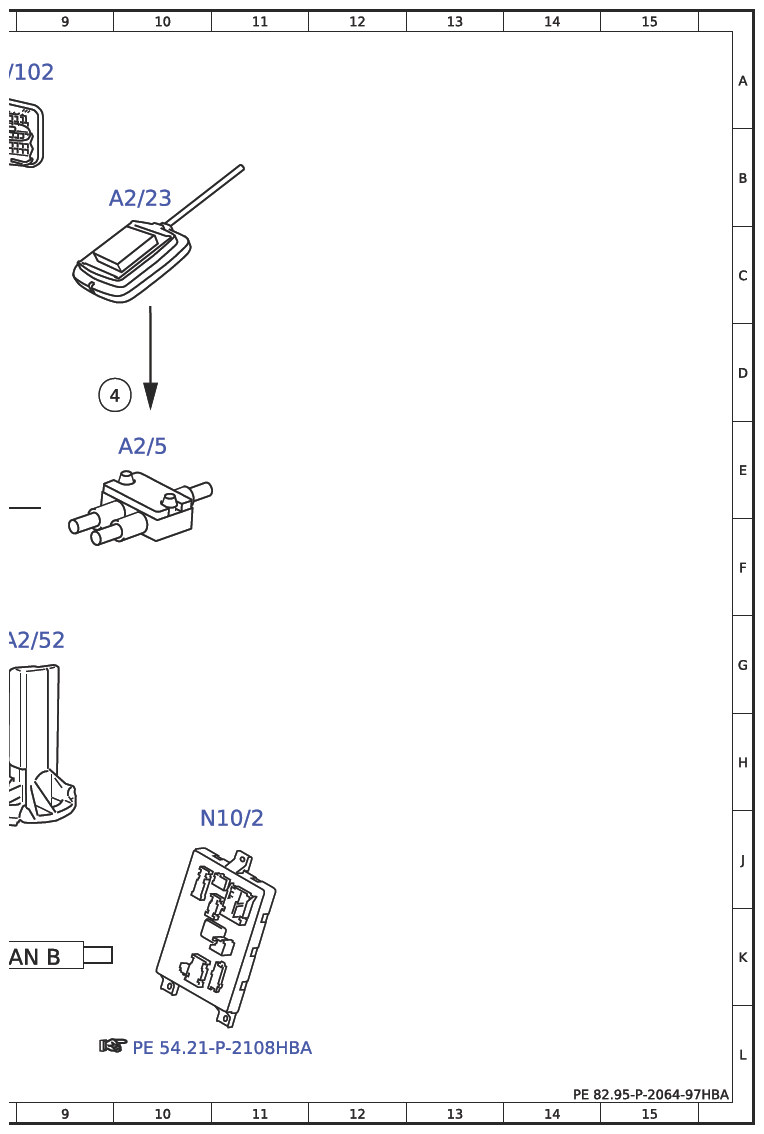

Electrical Function Diagram For Vehicle Location, Function - PE82.95-P-2064-97HBA
Model 190
with code 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 7G |
| 1 | ATA [EDW] alarm, signal | 8K |
| 2 | Telephone, signal | 7D |
| 2 | Telephone, signal | 8F |
| 2 | Telephone, signal | 7B |
| 2 | Telephone, signal | 5B |
| 3 | Circuit 15, status | 7G |
| 3 | Circuit 15, status | 5K |
| 4 | GPS, signal | 9D |
| 4 | GPS, signal | 8E |
| A2/102 | Left telephone antenna | 8A |
| A2/103 | Right telephone antenna | 4A |
| A2/109 | Telephone antenna splitter | 6C |
| A2/23 | GPS antenna | 9B |
| A2/5 | Global positioning system antenna splitter | 10E |
| A2/52 | Emergency call system antenna | 9G |
| CAN B | Interior CAN | 8K |
| CAN B | Interior CAN | 4K |
| CAN D | Diagnostic CAN | 6H |
| N10/1 | Front SAM control unit with fuse and relay module | 6J |
| N10/2 | Rear SAM control unit with fuse and relay module | 11J |
| N123/4 | Emergency call system control unit | 6E |
| N73 | Electronic ignition switch control unit | 2J |
