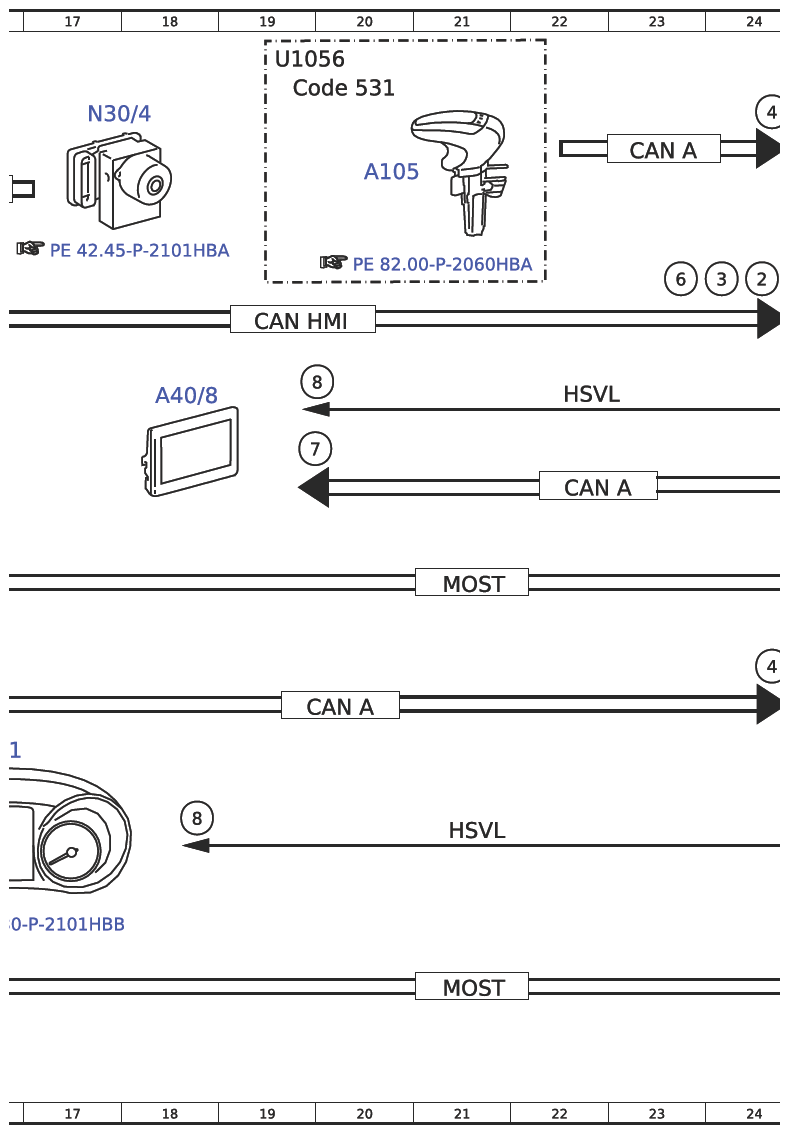

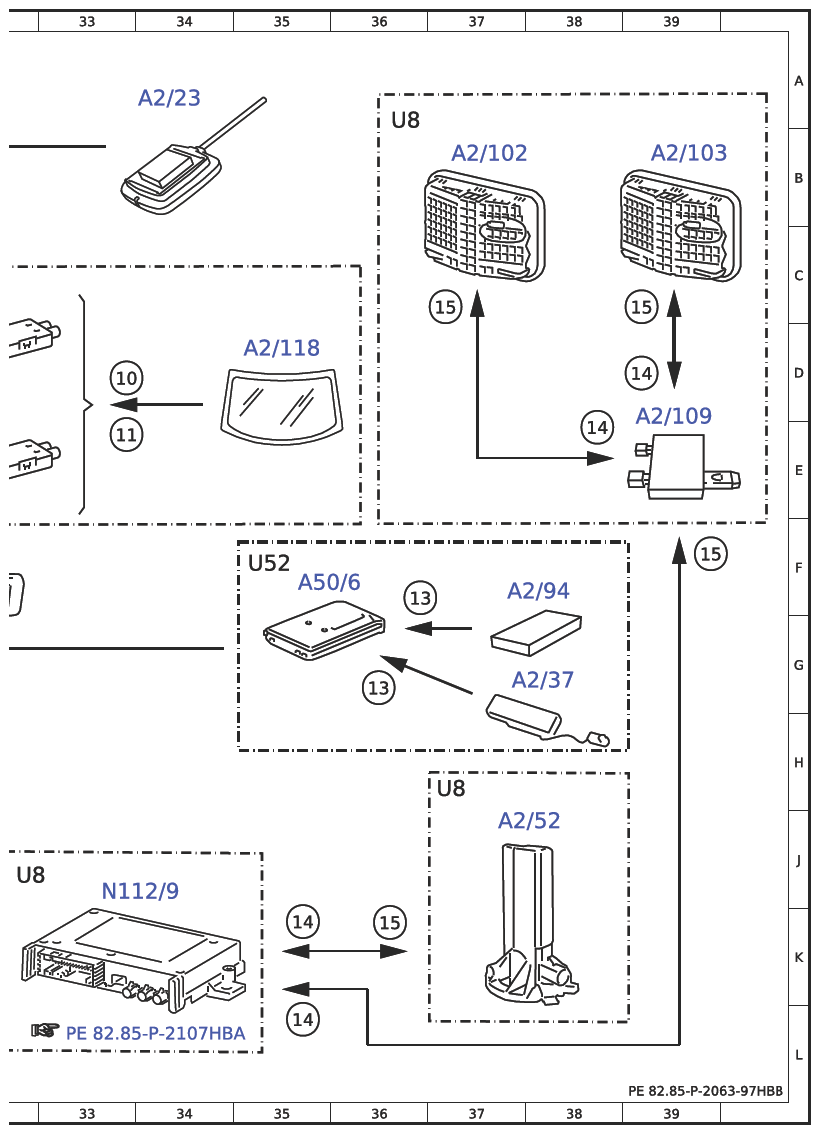

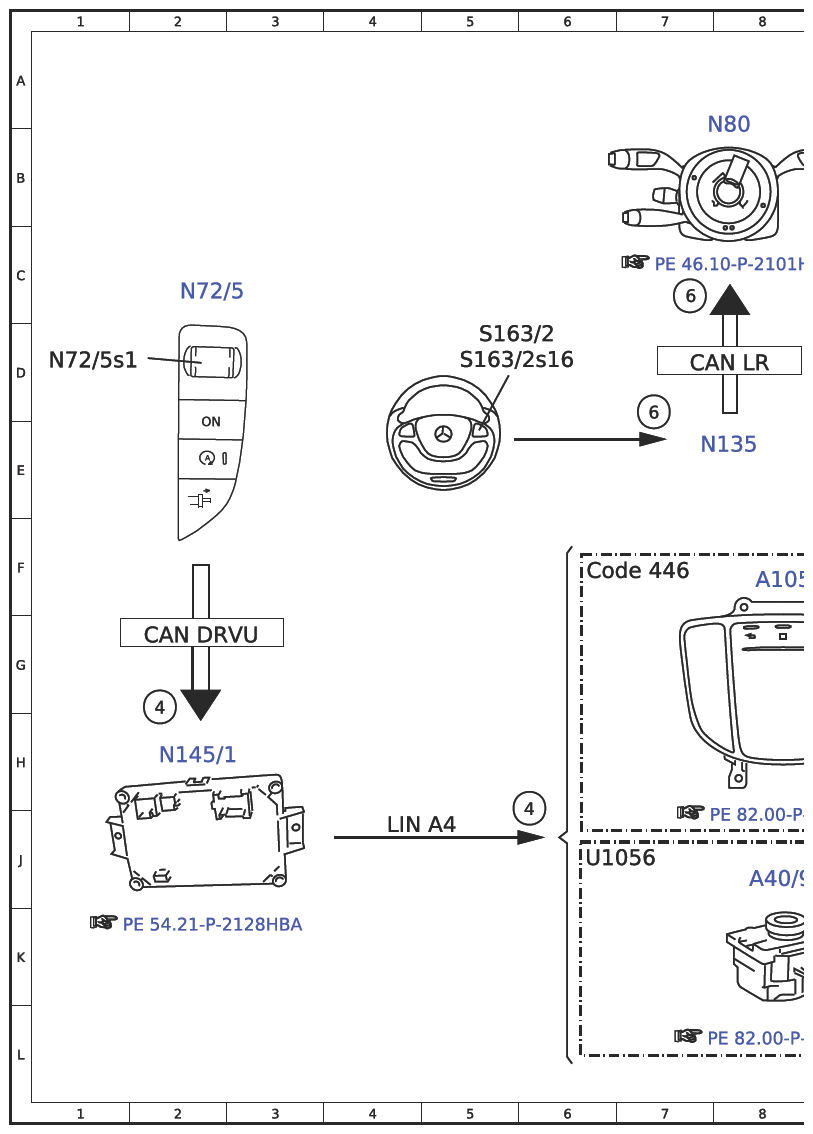

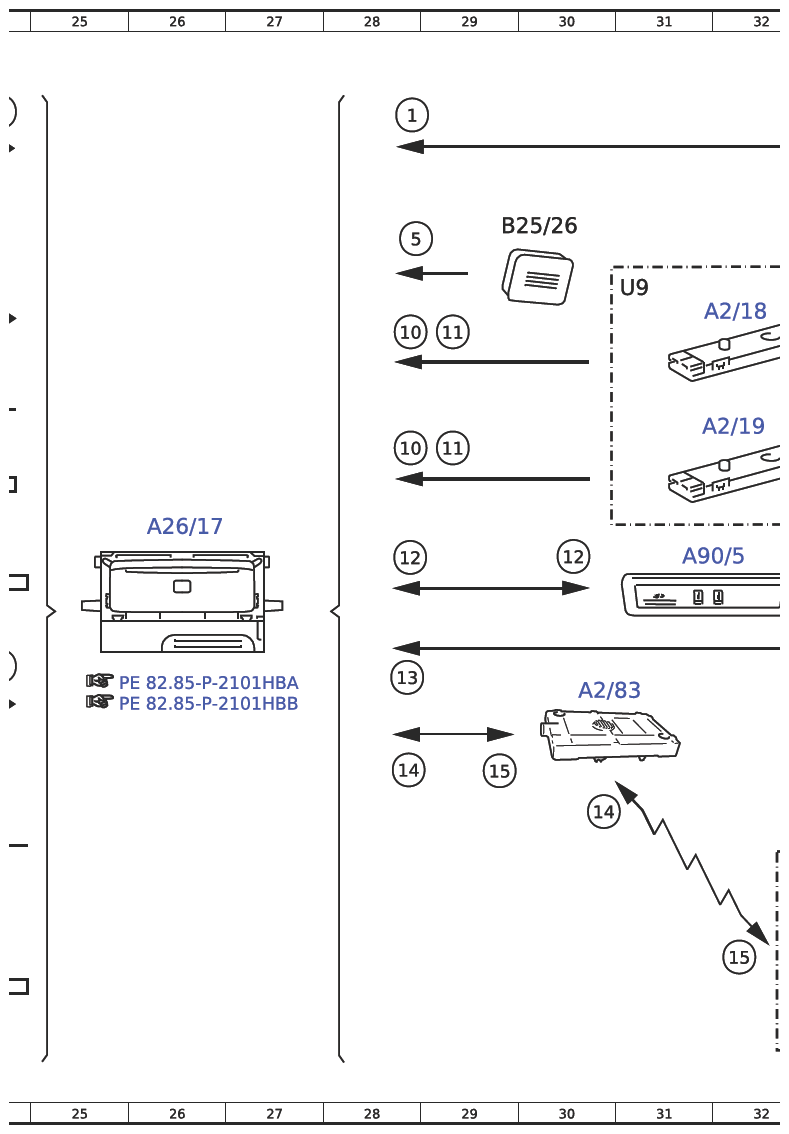

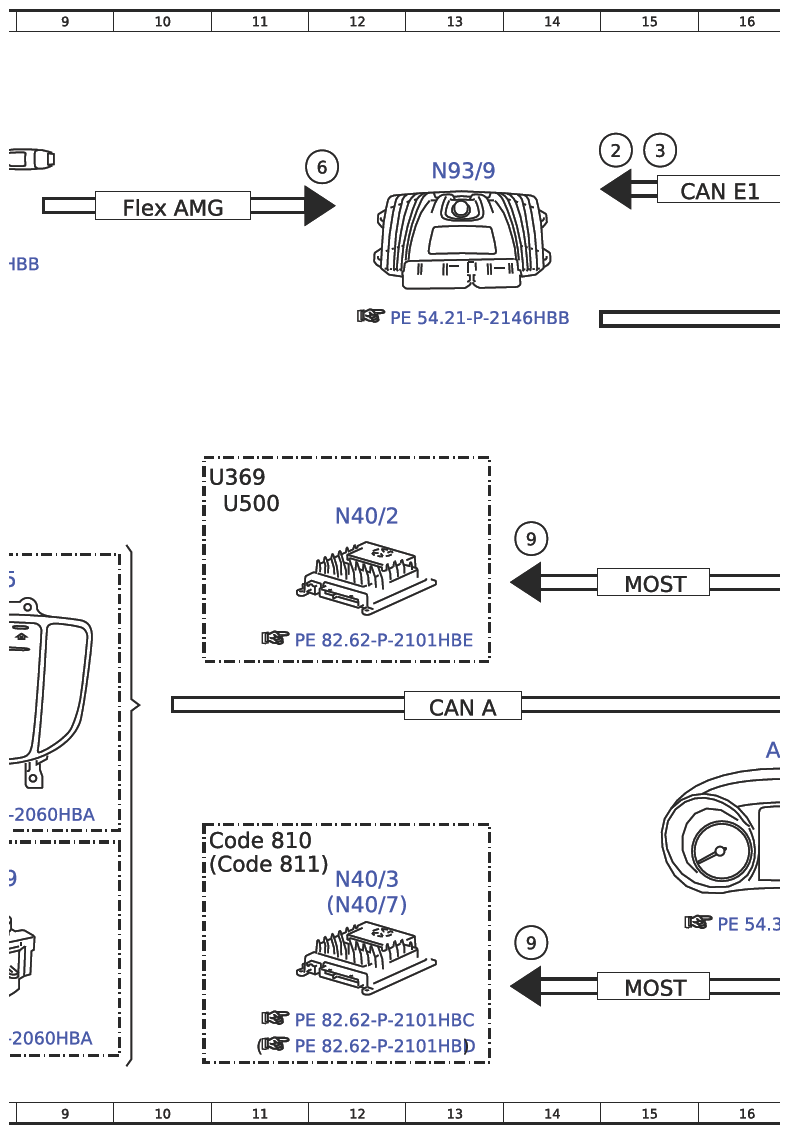

Electrical Function Diagram For Navigation Mode (COMAND), Function - PE82.85-P-2063-97HBB
Model 190 as of 12/1/18
as of model year 2019
with code 531 (COMAND APS)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | GPS, signal | 28A |
| 10 | FM antenna, signal | 28D |
| 10 | FM antenna, signal | 28E |
| 10 | FM antenna, signal | 33D |
| 11 | DAB band III, signal | 29D |
| 11 | DAB band III, signal | 29E |
| 11 | DAB band III, signal | 33E |
| 12 | Map data, signal | 28F |
| 12 | Map data, signal | 30F |
| 13 | Vehicle Information and Communication System (VICS), signal | 28G |
| 13 | Vehicle Information and Communication System (VICS), signal | 36F |
| 13 | Vehicle Information and Communication System (VICS), signal | 36G |
| 14 | Traffic data, signal | 35K |
| 14 | Traffic data, signal | 28H |
| 14 | Traffic data, signal | 35L |
| 14 | Traffic data, signal | 39D |
| 14 | Traffic data, signal | 38E |
| 14 | Traffic data, signal | 30J |
| 15 | Position data, signal | 36K |
| 15 | Position data, signal | 29H |
| 15 | Position data, signal | 39F |
| 15 | Position data, signal | 37C |
| 15 | Position data, signal | 39C |
| 15 | Position data, signal | 32K |
| 2 | Wheel speed, signal | 15B |
| 2 | Wheel speed, signal | 24C |
| 3 | Wheel rotation direction, signal | 15B |
| 3 | Wheel rotation direction, signal | 24C |
| 4 | Operation, signal | 24A |
| 4 | Operation, signal | 24G |
| 4 | Operation, signal | 2H |
| 4 | Operation, signal | 6J |
| 5 | Voice input, signal | 28C |
| 6 | Multifunction steering wheel button group, signal | 7D |
| 6 | Multifunction steering wheel button group, signal | 12B |
| 6 | Multifunction steering wheel button group, signal | 7C |
| 6 | Multifunction steering wheel button group, signal | 23C |
| 7 | Switch-on request, signal | 20E |
| 8 | High-speed video link video signal data transfer, signal | 19D |
| 8 | High-speed video link video signal data transfer, signal | 18J |
| 9 | Sound system amplifier, actuation | 14K |
| 9 | Sound system amplifier, actuation | 14F |
| A1 | Instrument cluster | 16H |
| A105 | Touchpad | 20B |
| A105 | Touchpad | 8F |
| A2/102 | Left telephone antenna | 37B |
| A2/103 | Right telephone antenna | 39B |
| A2/109 | Telephone antenna splitter | 39E |
| A2/118 | Windshield antenna | 35D |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 32C |
| A2/19 | FM 2 and DAB band III antenna amplifier | 32E |
| A2/23 | GPS antenna | 34A |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 38G |
| A2/52 | Emergency call system antenna | 37J |
| A2/83 | WLAN antenna | 30G |
| A2/94 | DSRC antenna | 38F |
| A26/17 | Head unit | 26F |
| A40/8 | Audio/COMAND display | 18D |
| A40/9 | Audio/COMAND control panel | 8J |
| A50/6 | Dedicated Short-Range Communications control unit | 35F |
| A90/5 | Multimedia connection unit | 31F |
| B25/26 | Driver hands-free system microphone | 30C |
| CAN A | Telematics CAN | 22E |
| CAN A | Telematics CAN | 23B |
| CAN A | Telematics CAN | 20H |
| CAN A | Telematics CAN | 13H |
| CAN DRVU | Drive Unit CAN | 2G |
| CAN E1 | Chassis CAN 1 | 16B |
| CAN HMI | User interface CAN | 19D |
| CAN LR | Steering wheel CAN | 8D |
| Code 446 | Touchpad only | 6F |
| Code 531 | COMAND APS | 19A |
| Code 810 | Sound system | 10J |
| Code 811 | Advanced sound system | 10J |
| Flex AMG | AMG FlexRay | 10B |
| HSVL | High-speed video link | 22D |
| HSVL | High-speed video link | 21J |
| LIN A4 | Audio LIN | 4J |
| MOST | Media Oriented System Transport | 15K |
| MOST | Media Oriented System Transport | 21K |
| MOST | Media Oriented System Transport | 15F |
| MOST | Media Oriented System Transport | 21F |
| N112/9 | HERMES control unit | 33J |
| N135 | Steering wheel electronics | 8E |
| N145/1 | Drive unit control unit | 2H |
| N30/4 | Electronic Stability Program control unit | 17A |
| N40/2 | Sound system midline amplifier control unit | 12F |
| N40/3 | Sound system amplifier control unit | 12J |
| N40/7 | Advanced sound system amplifier control unit | 12K |
| N72/5 | Right lower control panel | 2C |
| N72/5S1 | Volume adjustment and head unit ON switch | 1D |
| N80 | Steering column module control unit | 8B |
| N93/9 | AMG gateway control unit | 13B |
| S163/2 | Head unit multifunction steering wheel button group | 5D |
| S163/2S16 | Volume adjustment switch | 5D |
| U1056 | Valid except code 446 (Touchpad only) | 6J |
| U1056 | Valid except code 446 (Touchpad only) | 19A |
| U369 | Valid without code 811 Extended sound system | 10E |
| U500 | Not valid for sound system | 11E |
| U52 | Valid for Japan | 35F |
| U8 | Valid for code B54 or 367 (Live Traffic Information) and subscription for real-time traffic data | 37H |
| U8 | Valid for code B54 or 367 (Live Traffic Information) and subscription for real-time traffic data | 32J |
| U8 | Valid for code B54 or 367 (Live Traffic Information) and subscription for real-time traffic data | 36A |
| U9 | Not valid for code B54 or 367 (Live Traffic Information) and subscription for real-time traffic data | 31C |
