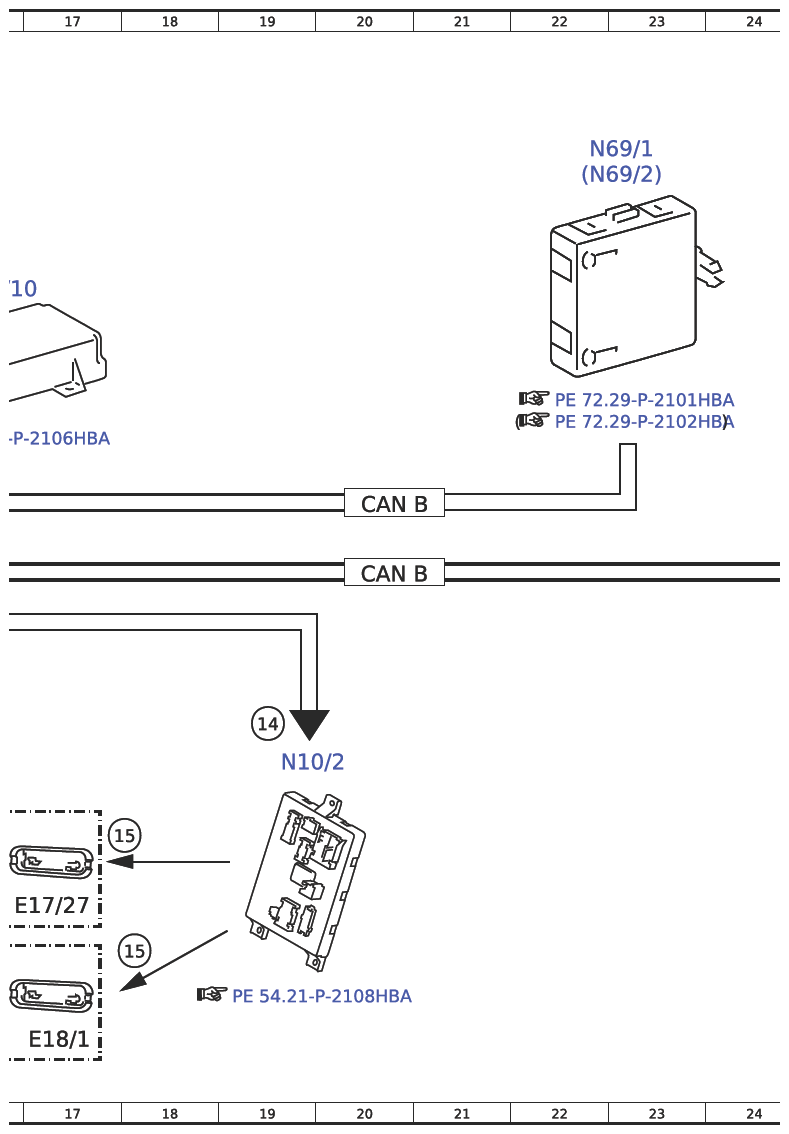

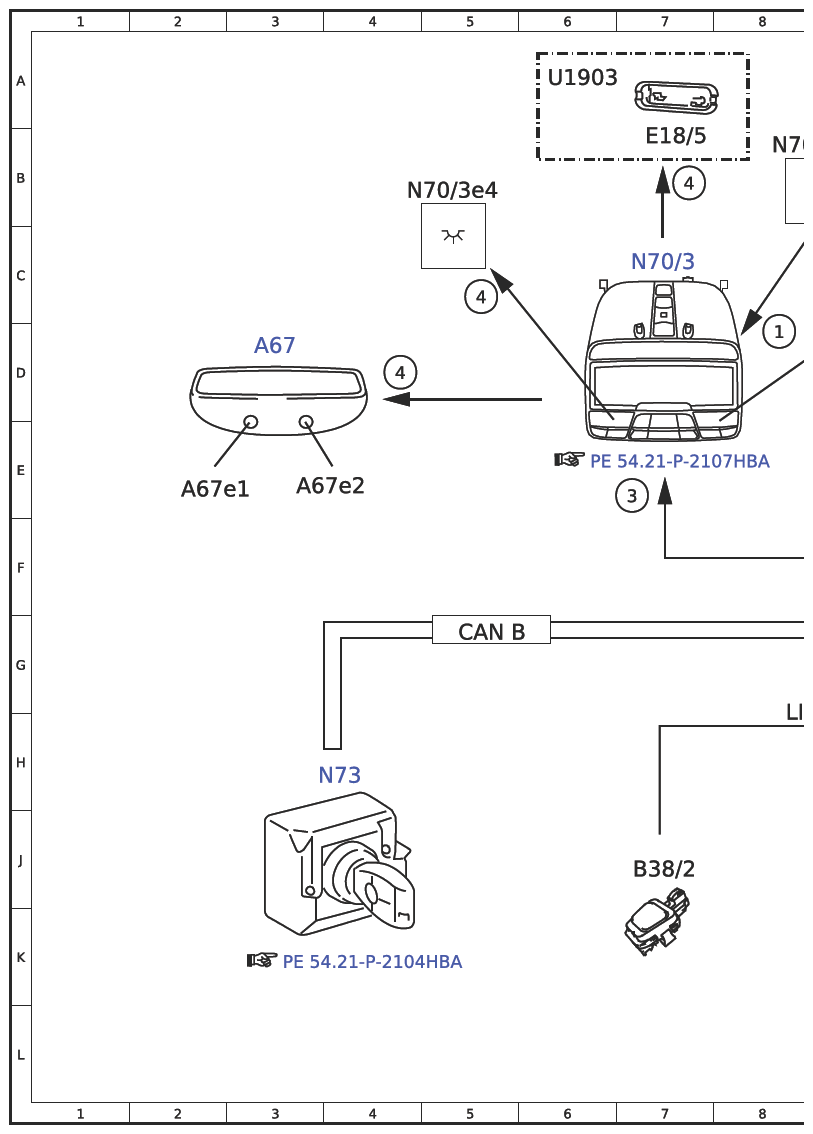

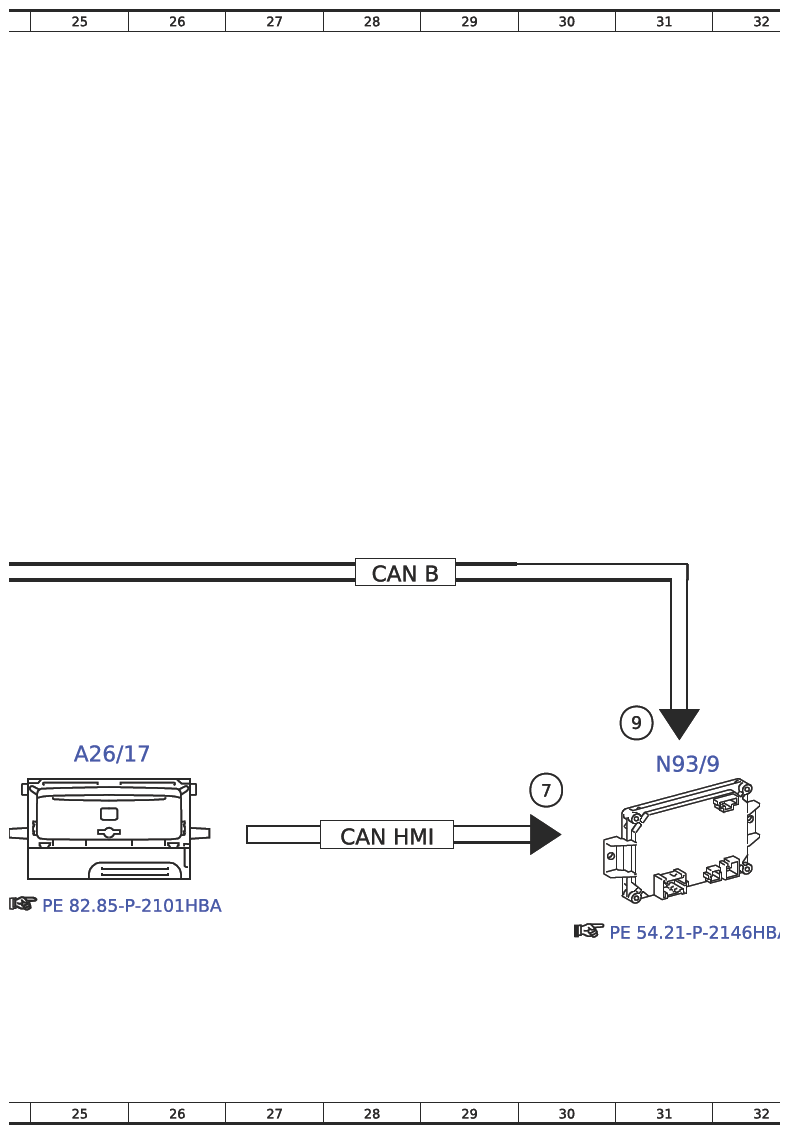

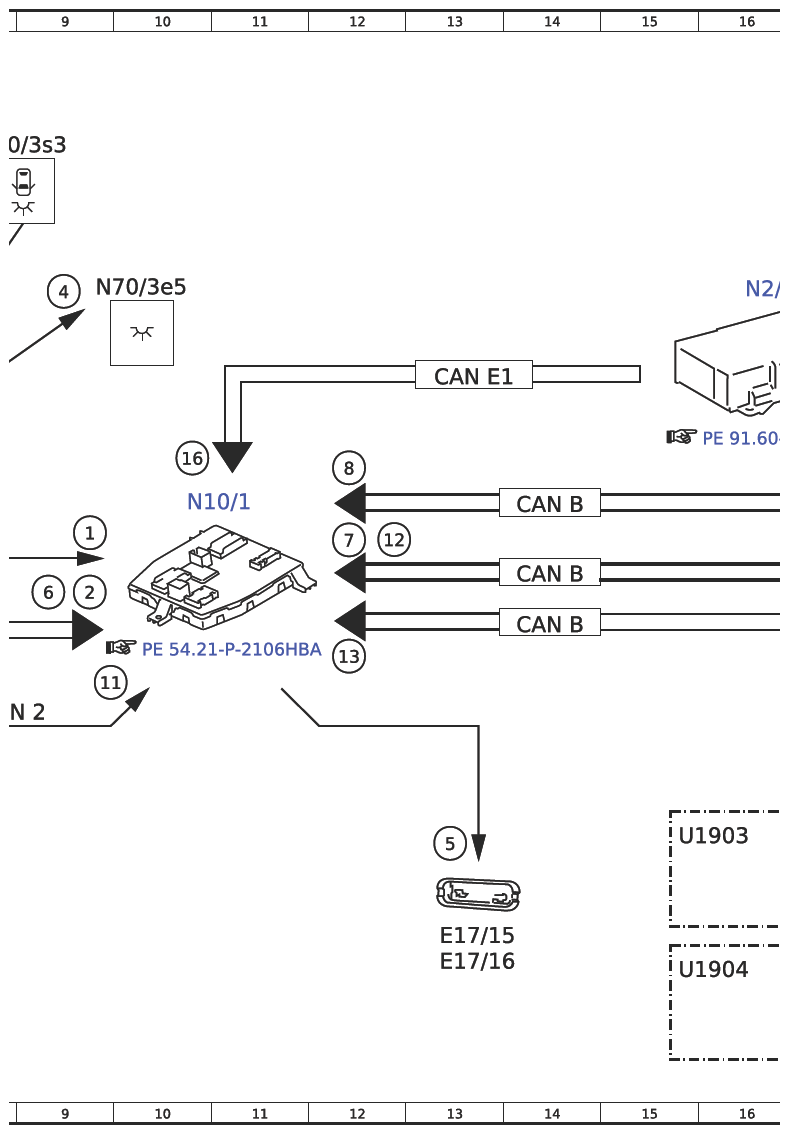

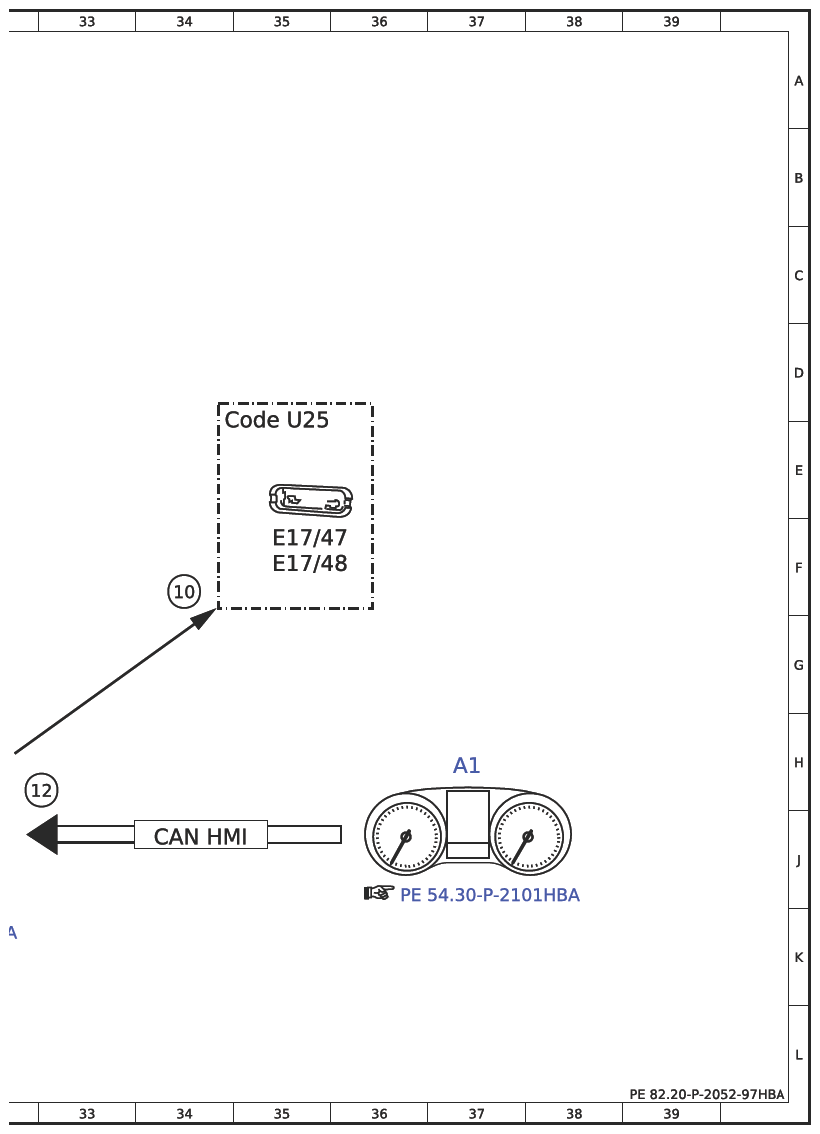

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97HBA
Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 9F |
| 1 | Automatic function switch, status | 8D |
| 10 | Illuminated door sill molding actuation | 34F |
| 11 | Dusk setting, signal | 9G |
| 12 | Vehicle speed, signal | 12F |
| 12 | Vehicle speed, signal | 33H |
| 13 | Trunk lid/liftgate lock main catch switch, status | 12G |
| 14 | Ambient lamp, request | 19H |
| 15 | Ambient lamp, actuation | 17J |
| 15 | Ambient lamp, actuation | 18K |
| 16 | Crash, signal | 10E |
| 2 | Central locking, status | 9F |
| 3 | Interior lamp, request | 7E |
| 4 | Interior lamp, actuation | 4D |
| 4 | Interior lamp, actuation | 5C |
| 4 | Interior lamp, actuation | 9C |
| 4 | Interior lamp, actuation | 7B |
| 5 | Footwell lamp, actuation | 13J |
| 6 | Circuit 15, status | 9F |
| 7 | OFF delay time, status | 12F |
| 7 | OFF delay time, status | 30H |
| 8 | Door rotary tumbler switch, status | 12E |
| 9 | Illuminated door sill molding, request | 31H |
| A1 | Instrument cluster | 37H |
| A26/17 | Head unit | 25H |
| A67 | Inside rearview mirror | 3D |
| A67e1 | Left reading lamp | 2E |
| A67e2 | Right reading lamp | 3E |
| B38/2 | Rain/light sensor | 7J |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 28F |
| CAN B | Interior CAN | 14F |
| CAN B | Interior CAN | 5G |
| CAN B | Interior CAN | 20E |
| CAN B | Interior CAN | 14E |
| CAN B | Interior CAN | 14G |
| CAN E1 | Chassis CAN 1 | 13D |
| CAN HMI | User interface CAN | 34J |
| CAN HMI | User interface CAN | 28J |
| Code U25 | Illuminated AMG door sills | 34E |
| E17/15 | Right footwell lamp | 13K |
| E17/16 | Left footwell lamp | 13K |
| E17/27 | Liftgate warning/ambient lamp | 17K |
| E17/47 | Left illuminated door sill molding | 35F |
| E17/48 | Right illuminated door sill molding | 35F |
| E18/1 | Luggage compartment lamp | 17L |
| E18/5 | Load compartment lamp | 7B |
| LIN 2 | Wiper/inside rearview mirror LIN | 8H |
| N10/1 | Front SAM control unit with fuse and relay module | 10E |
| N10/2 | Rear SAM control unit with fuse and relay module | 19H |
| N2/10 | Supplemental restraint system control unit | 16C |
| N69/1 | Left door control unit | 23B |
| N69/2 | Right door control unit | 22B |
| N70/3 | Overhead control panel electronics | 7C |
| N70/3e4 | Left interior lamp | 5B |
| N70/3e5 | Right interior lamp | 10C |
| N70/3S3 | Interior lamp automatic function switch | 8B |
| N73 | Electronic ignition switch control unit | 3H |
| N93/9 | AMG gateway control unit | 31H |
| U1903 | Valid for model 190.3 | 6A |
| U1903 | Valid for model 190.3 | 15J |
| U1904 | Valid for model 190.4 | 15K |
