Remove/Install Telephone Antenna Splitter - AR82.70-P-8956RGM

Model 190

With Code 348 (Emergency call/assistant system)

Model 190

With Code 360 (HERMES UMTS)

Model 190

With Code 362 (HERMES communications module LTE)

Model 190

With Code 380 (Car telephony package)

Model 190

With Code 386 (Comfort telephony)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Open service flap in trunk on left.

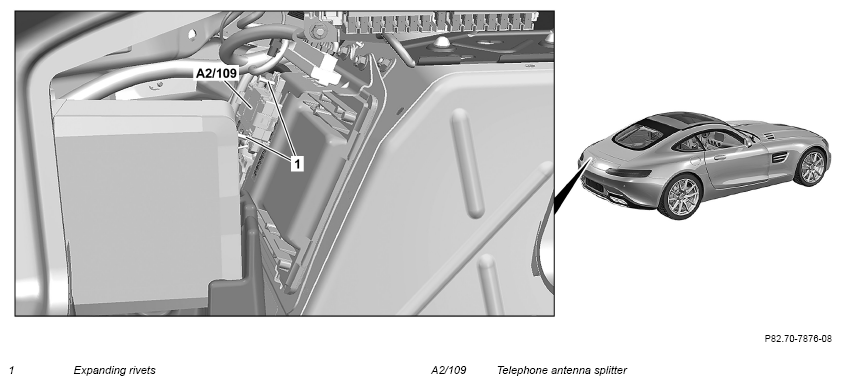

3	Open and unclip expansion rivets (1).	Dismantling tool	Fig 1
4	Pull telephone antenna splitter (A2/109) out as far as possible.
5	Release and disconnect electrical connectors from telephone antenna splitter (A2/109).
6	Remove telephone antenna splitter (A2/109).
7	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
