Remove/Install SDARS Antenna - AR82.62-P-0015RGR
Model 190.4
With Code 536 (Sirius satellite radio complete system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Open liftgate | ||

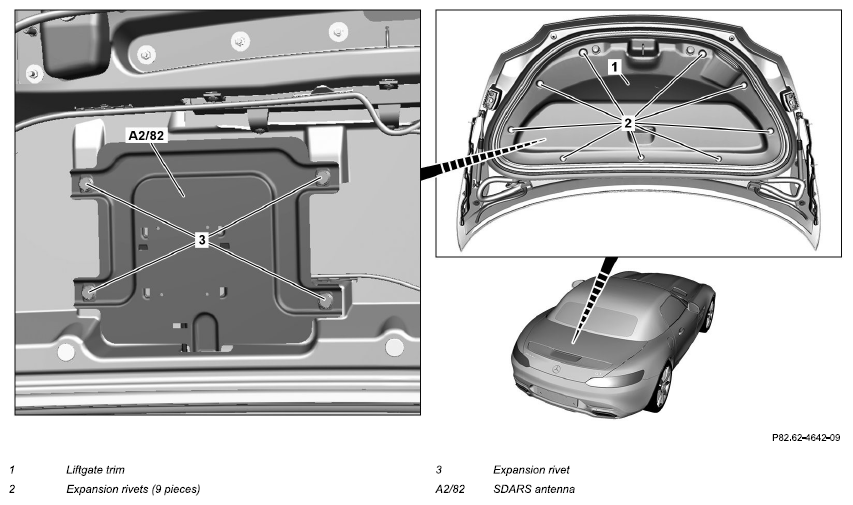

| 3 | Unclip the expansion rivets (2) from the liftgate trim (1) | Fig 1 | |
| 4 | Remove the liftgate trim (1) | ||
| 5 | Unclip the expansion rivets (3) from the SDARS antenna (A2/82) | Fig 1 | |
| 6 | Remove the SDARS antenna (A2/82) until the electrical connector is accessible | ||
| 7 | Release and disconnect the electrical connector and remove the SDARS antenna (A2/82) | ||
| 8 | Install in the reverse order |
