Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open stowage compartment (1) of center console at rear
2	Insert removal fixtures (3) in multimedia connection unit (A90/5) or USB electrical connectors (X115) and remove multimedia connection unit (A90/5) or USB electrical connectors (X115) from center console	Removal assembly	Fig 1
3	Operate locks (arrows) on multimedia connection unit (A90/5) or USB electrical connectors (X115) and pull out removal fixtures (3)	Removal assembly	Fig 1
4	Disconnect electrical connection (2)
5	Install in the reverse order

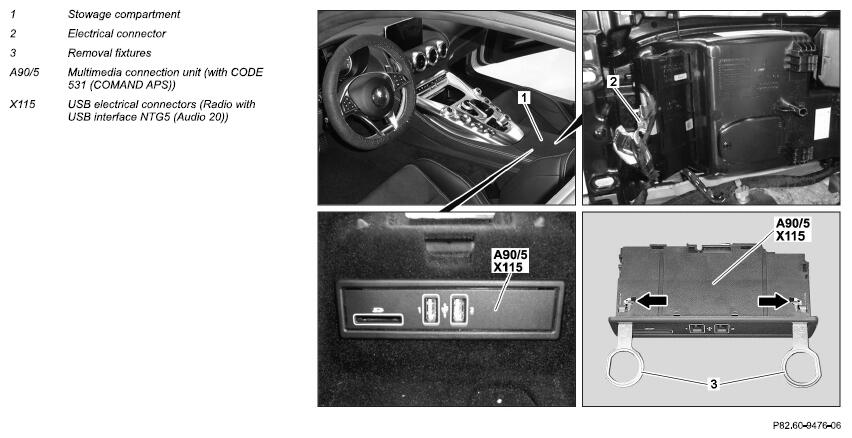

Fig 1: Identifying Removal Assembly (000 589 88 63 00)
