Remove/Install License Plate Lamps - AR82.10-P-5161RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition, remove transmitter key if necessary and place transmitter key outside of KEYLESS-GO transmission range

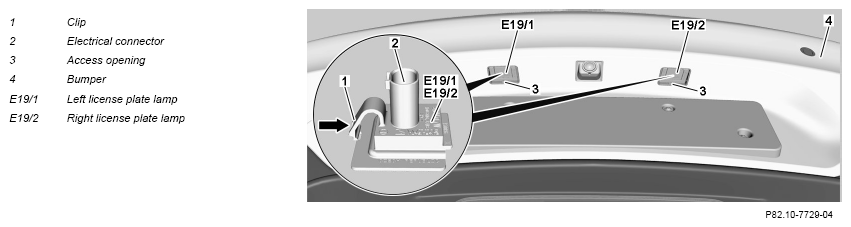

2	Press in clips (1) (see arrows) and unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from bumper (4)	Using a suitable screwdriver, enter the access opening (3) and press clip (1) to the side in the direction of the arrow.
3	Pull left license plate lamp (E19/1) or right license plate lamp (E19/2) out of bumper (4) and disconnect electrical connector (2)
4	Install in the reverse order
