Remove/Install HERMES Antenna - AR82.95-P-0030RGR
Model 190.4
With Code 360 (HERMES UMTS)
Model 190.4
With Code 362 (HERMES communications module LIE)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open luggage compartment lid | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

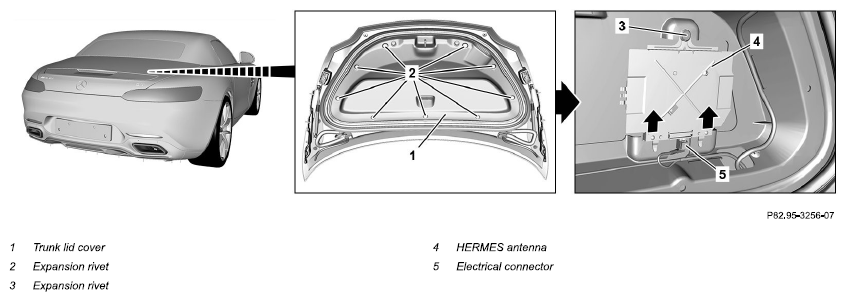

| 3 | Unclip expansion rivet (2) | Fig 1 | |
| 4 | Remove trunk lid trim (1) | ||
| 5 | Release and disconnect electrical connector (5) from HERMES antenna (4) | ||
| 6 | Unclip expansion rivet (3) and remove HERMES antenna (4) | Fig 1 | |
| 7 | Install in the reverse order |
