Remove/Install Bluetooth Antenna - AR82.62-P-8980RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

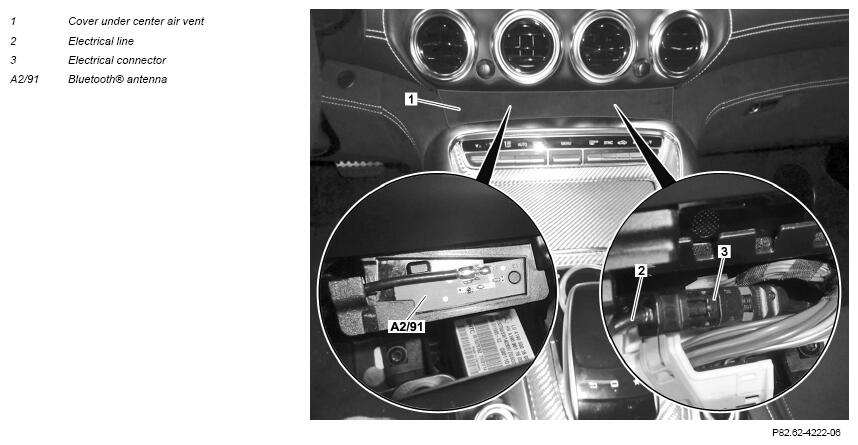

1	Unclip cover (1) under center air vent
2	Disconnect electrical connector (3)
3	Unclip Bluetooth antenna® (A2/91) and remove	Carefully unclip Bluetooth antenna® (A2/91). The Bluetooth® antenna (A2/91) can otherwise be damaged.
		Note routing of the electrical line (2).
4	Install in the reverse order
