Remove/Install Additional Brake Lamp - AR82.10-P-5376RGR

Model 190.4

MODIFICATION NOTES

19.10.2017

Operation steps added

Operation step 4 and 8

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Open trunk lid
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)

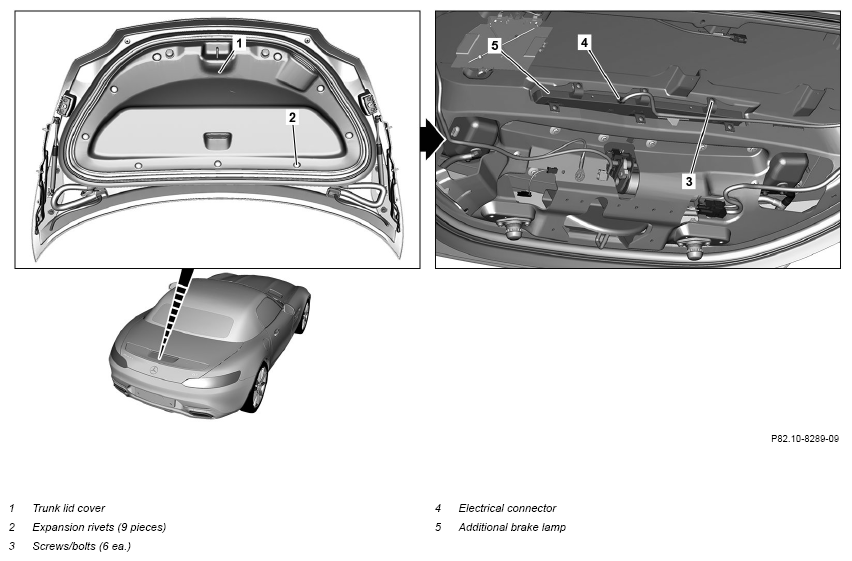

3	Remove expansion rivets (2)
4	Use handle to move trim for trunk lid (1) rearwards out of the body opening
5	Release and disconnect electrical connector of trunk lighting
6	Release and disconnect electrical connection (4)
7	Remove screws (3)
8	Remove additional brake lamp (5)	Replace additional brake lamp (5).
		The additional brake lamp (5) is bonded into place. It cannot be removed without damaging it.
	Clean
9	Remove glue residues and clean bonding surfaces	The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise there may be adhesion problems.
		Cleaner	*BR00.45-Z-1025-04A
10	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
