Check Wiper Arms And Adjust - AR82.30-P-6000RQ

Model 190, 197

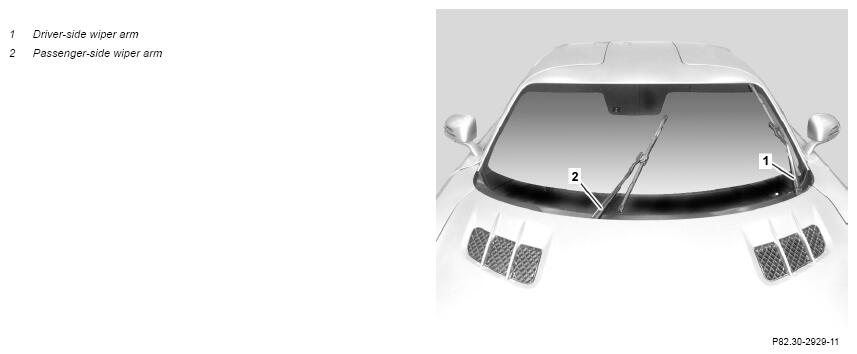

Shown on model 197.3, windshield wiper system in reversing position

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
	Check
1	Switch off ignition, remove transmitter key if necessary and place transmitter key outside of KEYLESS-GO transmission range
2	Manually position windshield wiper system in reversing position
3	Remove wiper blades
4	Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
5	Check angle of incidence of driver-side wiper arm (1) and passenger-side wiper arm (2) to windshield		AR82.30-P-6000-01CW
		When working on raised driver-side wiper arm (1) or passenger-side wiper arm (2), ensure that they do not fall onto the windshield. The windshield can otherwise be damaged.
		When changing from reversing position to park position, make sure that driver-side wiper arm (1) and passenger-side wiper arm (2) do not make direct contact with windshield. The windshield can otherwise be scratched.
		Cover driver-side wiper arm (1) and passenger-side wiper arm (2) with appropriate means (scratch protection).
		Adjusting tool set	Fig 1
6	Compare test values with adjustment values and select correct adjustment measure	Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01M
		Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
	Adjust
7	Adjust angle of incidence of driver-side wiper arm (1) or front passenger side wiper arm (2) in park position	In the event that the test values deviate from the tolerance range in reversing position or in parked position and reversing position.	AR82.30-P-6100-01CW
		When working on raised driver-side wiper arm (1) or passenger side wiper arm (2), ensure that they do not fall onto the windshield The windshield can otherwise be damaged.
		Distort driver-side wiper arm (1) or front passenger side wiper arm (2) by at least the value of the tolerance deviation in reversing position.
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Adjusting tool set	Fig 1
8	Remove attached scratch protection and install wiper blades

Fig 1: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
