Side Damage Seam Sealing Following Repair - Ar97.10-P-4000-03RG
Model 190
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Seam seal 300 ml in black or white | A 005 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
There are two methods for processing seam seals

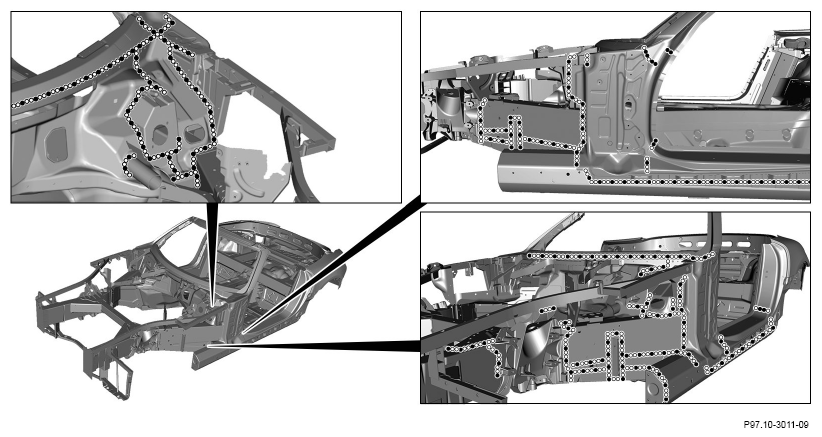

Shown on model 190.4, area of A-pillar, side wall and/or interior paneling and door sill

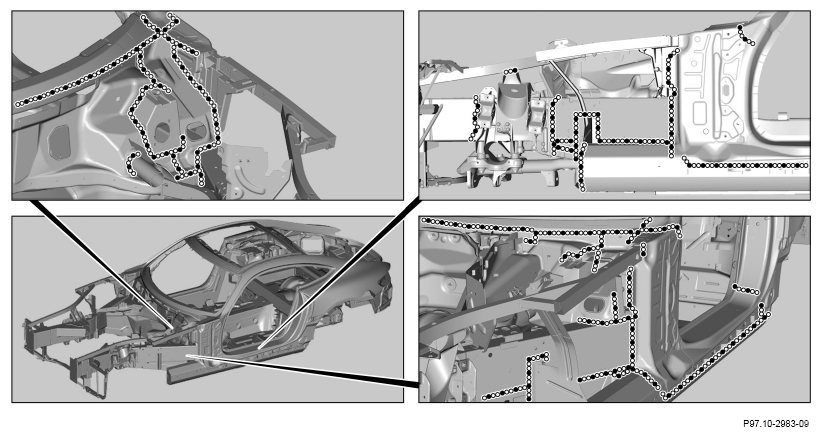

Shown on model 190.3, area of A-pillar, side wall and/or interior paneling and door sill
- Seal spot welds and rivets in repaired area with sealant or seam sealing material.
Insert stop plugs and rubber grommets with sealant. Keep thread of weld nuts and threaded pins free from sealing compound via masking off or covering with cardboard sleeves. Also keep drain openings and contact surfaces of axle attachments, windows or detachable parts free from sealant compound. Seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard sealing.

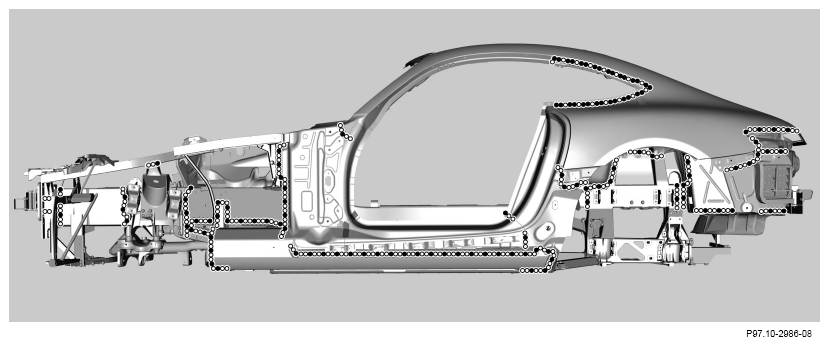

Shown on model 190.3, area of B-pillar and door sill

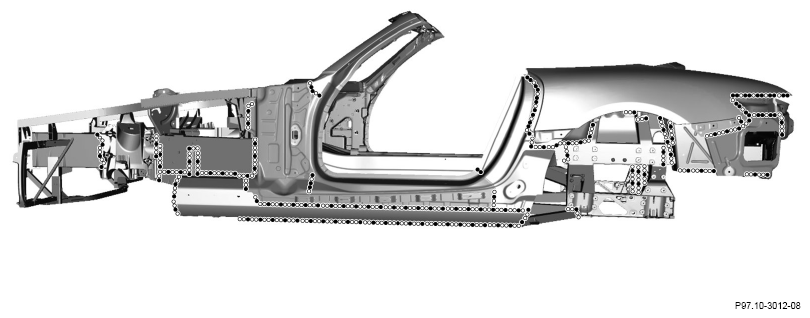

Shown on model 190.4, area of B-pillar and door sill

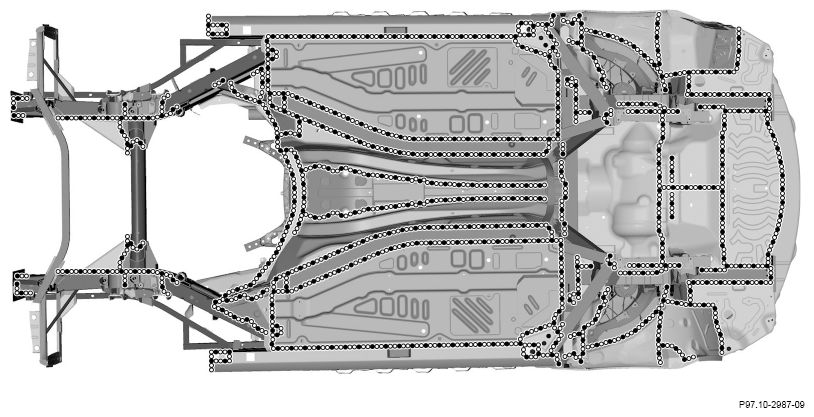

Area of underfloor and inner or outer rear wheel well
