Roof Sealing Seam After Repairing - Ar97.10-P-4000-05RG
Model 190
REPAIR MATERIALS
| Number |
Designation |
Order number |
| BR00.45-Z-1003-01A |
Seam seal 300 ml in black or white |
A 005 989 63 20 |
| BR00.45-Z-1041-01A |
Seam sealant, sprayable 310 ml |
A 002 989 84 20 |
There are two methods for processing seam seals
 Courtesy of MERCEDES-BENZ USA
|

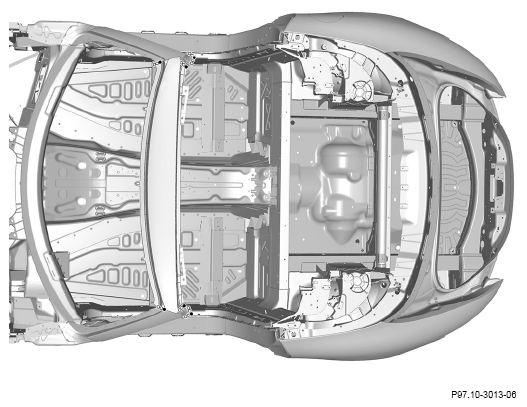

Shown on model 190.4
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|

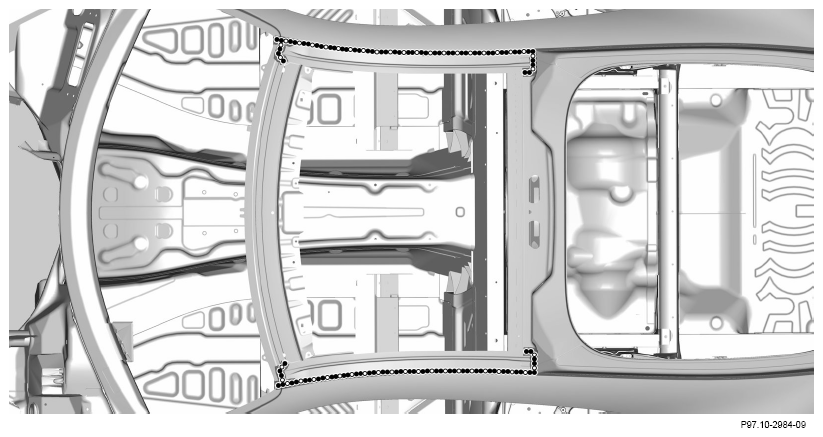

Shown on model 190.3
- Seal spot welds and rivets in repaired area with sealant or seam sealing material.
Insert stop plugs and rubber grommets with sealant. Keep thread of weld nuts and threaded pins free from sealing compound via masking off or covering with cardboard sleeves. Also keep drain openings and contact surfaces of axle attachments, windows or detachable parts free from sealant compound. Seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard sealing.
