Welding Panel On Side Longitudinal Member Removal - Ar63.30-P-1500-01RG

Model 190

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

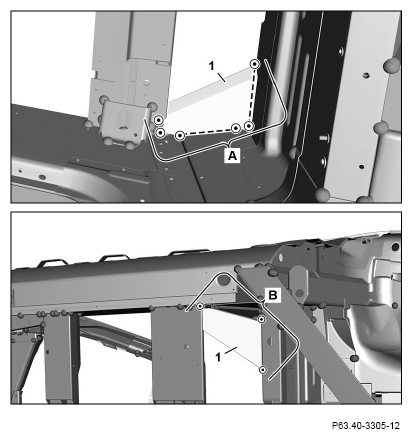

1. Expose weld seams/spots on longitudinal member welding panel (1) inside and cut (area A).
2. Expose spot welds on longitudinal member welding panel (1) and cut out (area B).
3. Remove damaged longitudinal member welding panel (1).
4. Remove shavings using wet/dry vacuum cleaner.

   Shown on model 190.4

   Courtesy of MERCEDES-BENZ USA
