Welding Panel On Side Longitudinal Member Installation - Ar63.30-P-1500-03RG

000 588 12 84 00 Welder

Model 190

Further information can be found in the superordinate service document. Comply with safety information in superordinate customer service document.

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

Shown on model 190.4

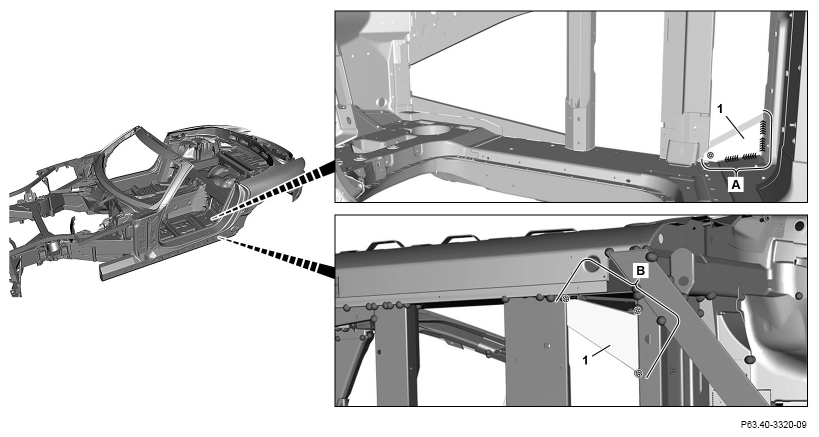

Install welding panel for longitudinal member (1) and fit.
Fix in place longitudinal member welding panel (1) at inside at rear wall crossmember and at front seat rear crossmember and tack weld with welder ( ) (area A).
When MIG welding ( ) prepare welds by grinding down to bare metal with stainless steel brush. The weld seams must be tacked at the start, end and around every 4 cm.
Check weld seam gap.
The weld seam gap must not be larger than 1 mm; if necessary, make an add-on seam weld.
Weld welding panel for longitudinal member (1) inside with welder ( ) (area A).
When MIG welding ( ), prepare welds by grinding down to bare metal with stainless steel brush directly before welding. Tack weld seams at start, end and approx. every 4 cm. Weld seam gap should not be greater than 1 mm; if required, create a pre-seam.
Weld longitudinal member welding panel (1) at bottom to rear wall crossmember and to front seat rear crossmember with welder ( ) (area B).
When MIG welding ( ) prepare welds by grinding down to bare metal with stainless steel brush.
