Weld-On Plate On Side Longitudinal Member Preparation - Ar63.30-P-1500-02RG

Model 190

The following steps are shown on the new part on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

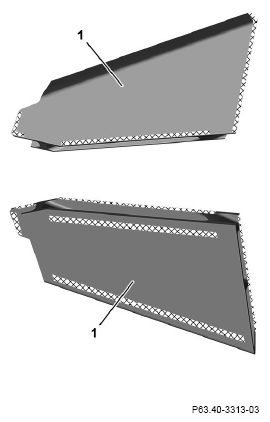

1. Grind mating surfaces for bonded connections on welding panel (1) in crosshatched areas.

   Observe pretreatment of bonding surfaces.

2. Grind mating surfaces for weld joints on welding panel (1) in crosshatched areas.

   Prepare welds by grind down to bare metal with stainless steel brush.

3. Remove shavings using wet/dry vacuum cleaner.
