Upper A-Pillar Reinforcement Removal - Ar63.20-P-1113-01RG

Model 190

The following operation steps are shown on the left side of the vehicle. Perform them analogously if right side of vehicle is damaged.

Courtesy of MERCEDES-BENZ USA

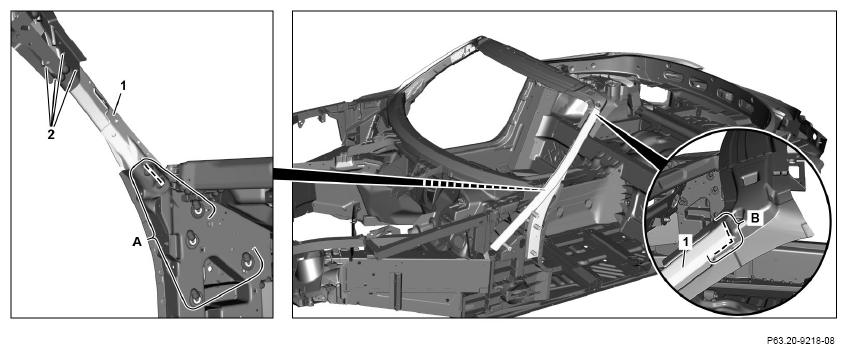

Shown on model 190.4

1. Expose blind rivets (2) on upper A-pillar reinforcement (1) and drill off.
2. Expose weld seams on upper A-pillar reinforcement (1) and cut out (areas A and B).
3. Remove damaged upper A-pillar reinforcement (1).
4. Remove shavings using wet/dry vacuum cleaner.
5. Level mating surfaces on body in cross-hatched areas and grind down to bare metal.

   Observe pretreatment of weld joints.

6. Remove shavings using wet/dry vacuum cleaner.

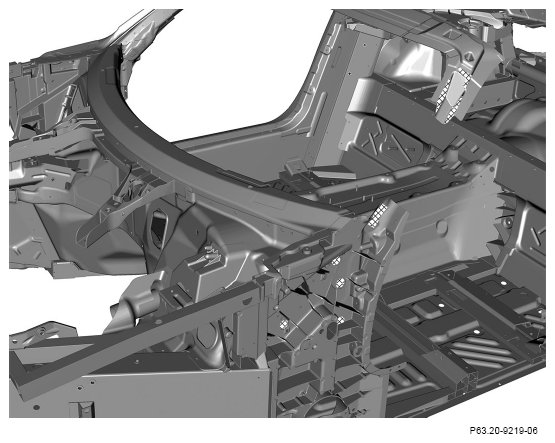

   Shown on model 190.4

   Courtesy of MERCEDES-BENZ USA
