Upper A-Pillar Reinforcement Prepare For Installation - Ar63.20-P-1113-03RG

Model 190

The following operation steps are shown on the new part on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.

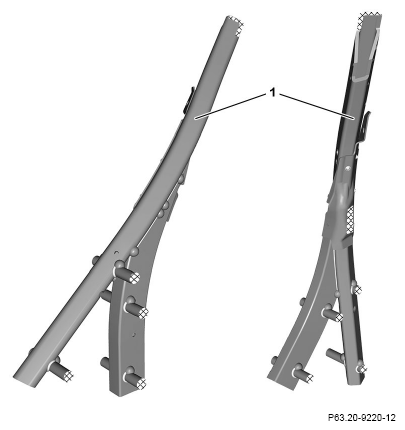

1. Grind mating surfaces of upper A-pillar reinforcement (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of weld joints.

2. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA
