Rear Fender Completely Separate - Ar63.50-P-1410-01RG

	000 588 15 84 00 Heat gun		WS54.00-P-0125B
	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B

Model 190.4

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

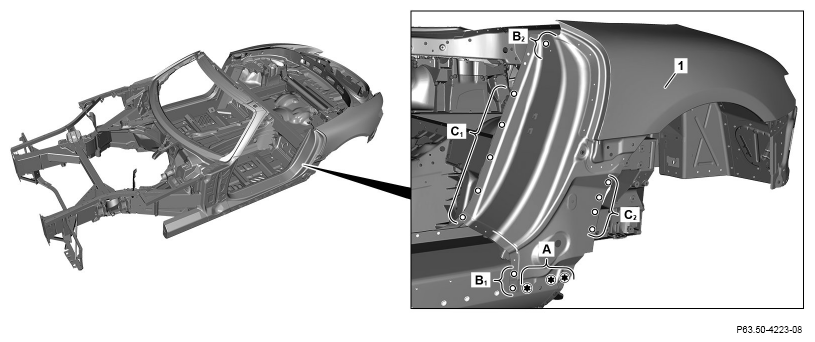

1. Heat flow drill screws on rear fender (1) with heat gun and remove (area A).

   Flow-drill bolts are bonded and must be heated.

2. Expose and cut off self-pierce rivets on rear fender (1) (areas B₁ and B₂ ).
3. Expose self-pierce rivets on rear fender (1) and cut with rivet press tool (areas C₁ and C₂ ).
4. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

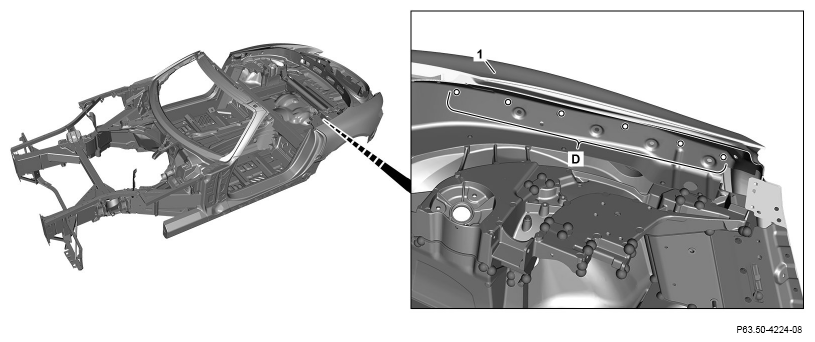

5. Expose and drill off blind rivets on rear fender (1) (area D).
6. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

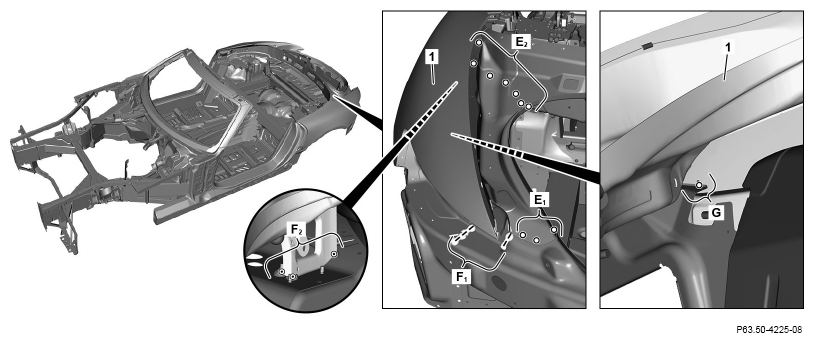

7. Expose and cut off self-pierce rivets on rear fender (1) (areas E₁ and E₂ ).
8. Expose and cut off weld seams/spot welds on rear fender (1) (areas F₁ and F₂ ).
9. Cut blind rivet on rear fender (1) (area G).
10. Remove shavings using wet/dry vacuum cleaner.

    Courtesy of MERCEDES-BENZ USA

11. Expose and cut off self-pierce rivets on rear fender (1) (areas H₁ and H₂ ).
12. Remove shavings using wet/dry vacuum cleaner.

    Courtesy of MERCEDES-BENZ USA

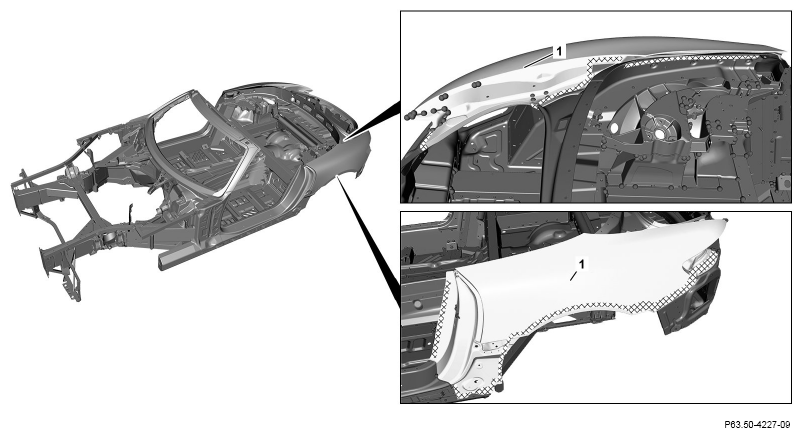

13. Heat rear fender (1) in cross-hatched areas with heat gun.

    Cross-hatched areas are bonded with adhesive.

14. Remove damaged rear fender (1).

    Courtesy of MERCEDES-BENZ USA

15. Grind mating surfaces on body down to bare metal in crosshatched areas.

    Observe pretreatment of bonding surfaces and weld joints.

16. Remove shavings using wet/dry vacuum cleaner.
