Outer Side Longitudinal Member Separation - Ar63.30-P-1050-01RG

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 15 84 00 Heat gun		WS54.00-P-0125B

Model 190

The following operation steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.

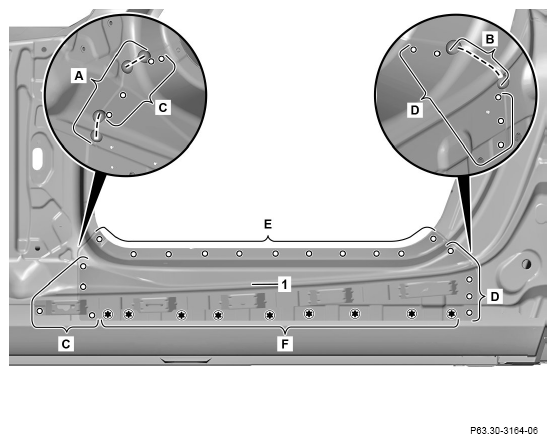

1. Expose weld seams on outer side longitudinal member (1) and cut (areas A and B).
2. Expose self-pierce rivets on outer side longitudinal member (1) and cut (areas C and D).
3. Remove shavings using wet/dry vacuum cleaner.
4. Expose self-pierce rivets on outer side longitudinal member (1) and remove rivets with rivet press tool (area E).
5. Heat flow-hole and self-tapping fillister head screws on outer side longitudinal member (1) with heat gun and remove (area F).

   Flow drill screws and selftapping fillister head screws are bonded.

   Shown on model 190.4

   Courtesy of MERCEDES-BENZ USA

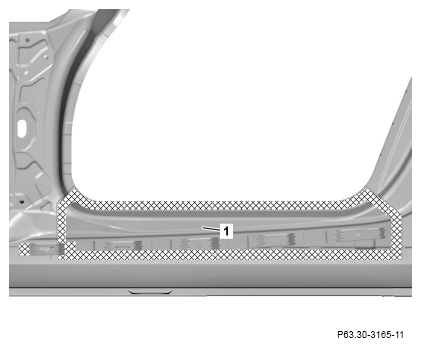

6. Heat outer side longitudinal member (1) in cross-hatched areas with heat gun.

   Cross-hatched areas are bonded with adhesive.

7. Remove damaged outer side longitudinal member (1).

   Courtesy of MERCEDES-BENZ USA

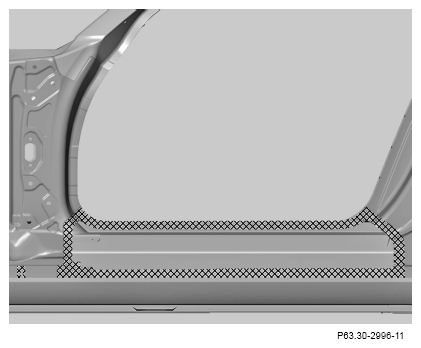

8. Level mating surfaces on body in cross-hatched areas and grind down to bare metal.

   Observe pretreatment of bonding surfaces and weld joints.

9. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA
