Outer Rear Wheel Well Removal - Ar63.10-P-0660-01RG

	000 588 15 84 00 Heat gun		WS54.00-P-0125B
	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B

Model 190

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

All spare parts required for this repair can basically be fully or partially replaced. Observe series production joining connections and bonded connections.

Courtesy of MERCEDES-BENZ USA

Shown on model 190.3

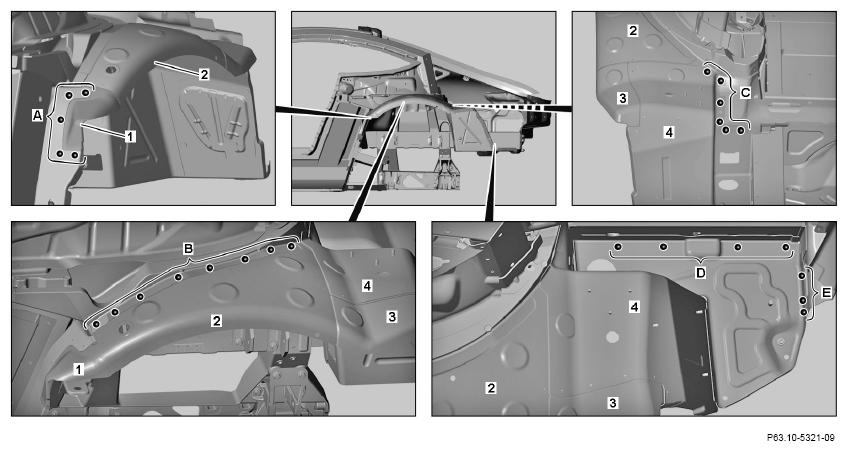

1. Expose self-pierce rivets on front wheel well (1) and remove with rivet press tool (area A).
2. Expose self-pierce rivets on center wheel well (2) and remove with rivet press tool (area B).
3. Expose self-pierce rivets on rear wheel well (4) and remove with rivet press tool (areas C, D, E).

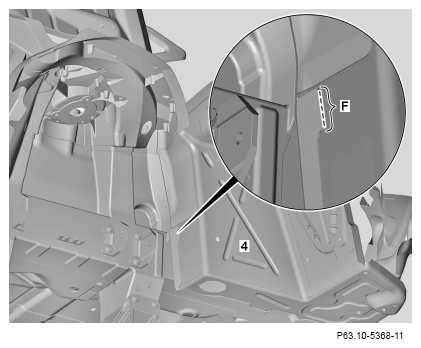

4. Expose and cut off weld seam on rear wheel well (4) (area F).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on model 190.3

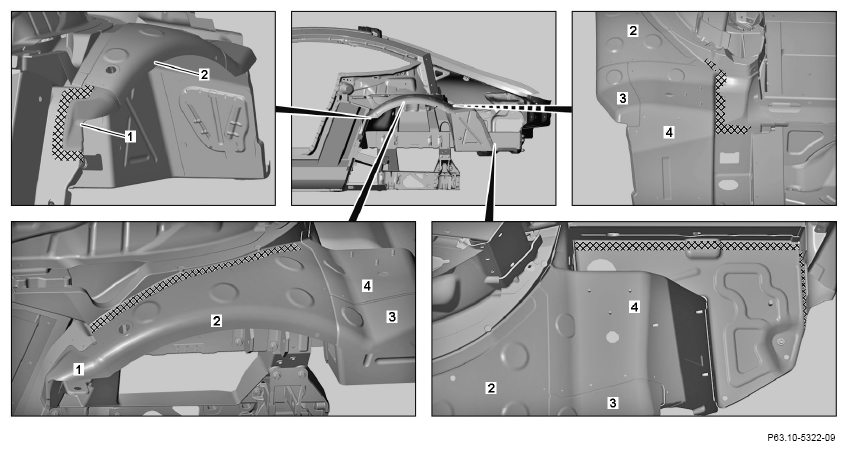

5. Heat front wheel well (1), center wheel well (2) and rear wheel well (4) with a heat gun in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

6. Remove damaged front wheel well (1), center wheel well (2) and rear wheel well (4).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 190.3

7. Grind mating surfaces on body down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

8. Remove shavings using wet/dry vacuum cleaner.
