Outer Main Floor Panel Reinforcement Removal - Ar63.40-P-1100-01RG

Model 190

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

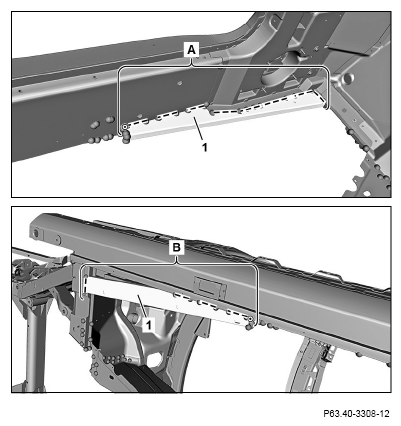

1. Expose weld seams/spots on outer main floor reinforcement (1) inside and cut (area A).
2. Expose weld seams/spots on outer main floor reinforcement (1) at bottom and cut (area B).
3. Remove damaged outer main floor reinforcement (1).
4. Remove shavings using wet/dry vacuum cleaner.

   Shown on model 190.4

   Courtesy of MERCEDES-BENZ USA
