New Rear Fender Preparation - Ar63.50-P-1400-03RG

Model 190.3

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

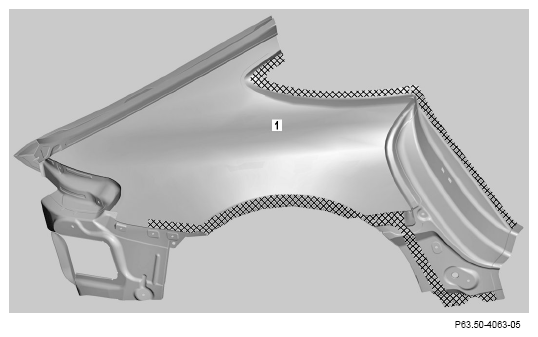

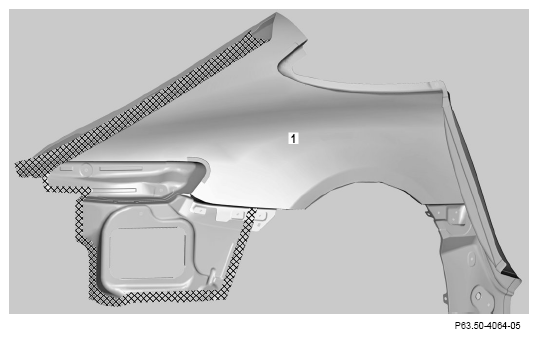

1. Grind mating surfaces on fender (1) down to bare metal in the crosshatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

2. Grind mating surfaces on welding bath support (2) down to bare metal in crosshatched areas.
