Main Floor Panel Preparation - Ar63.40-P-1180-10RG

Model 190

The following steps are shown on new parts on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Grind mating surfaces on end plate (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

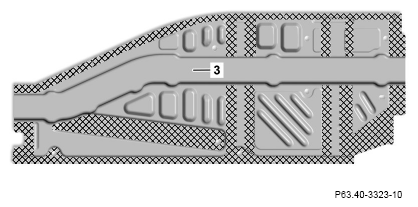

3. Grind mating surfaces on main floor (3) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA
