End Plate On Rear Fender Preparation - Ar63.50-P-1402-03RG

Model 190

The following steps are shown on the new part on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

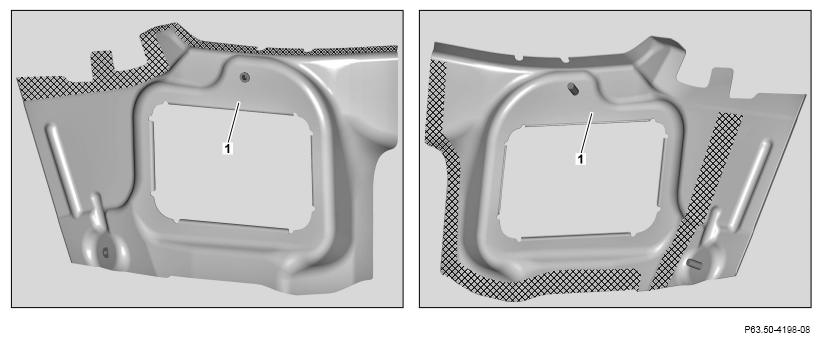

1. Grind mating surfaces on end plate (1) for adhesively bonded connections/weld joints in crosshatched areas.

   Observe pretreatment of bonding surfaces. Prepare welds by grind down to bare metal with stainless steel brush.

2. Remove shavings using wet/dry vacuum cleaner.
