Disconnect End Plate On Rear Fender - Ar63.50-P-1402-02RG

000 588 15 84 00 Heat gun

WS54.00-P-0125B

Model 190

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

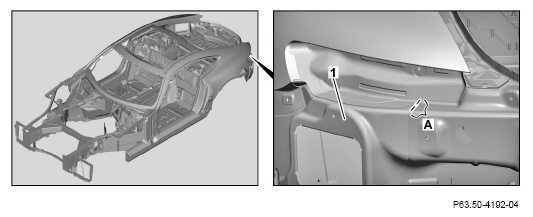

1. Expose and cut off weld joints on end plate (1) (area A).
2. Remove shavings using wet/dry vacuum cleaner.

   Shown on model 190.3

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on model 190.3

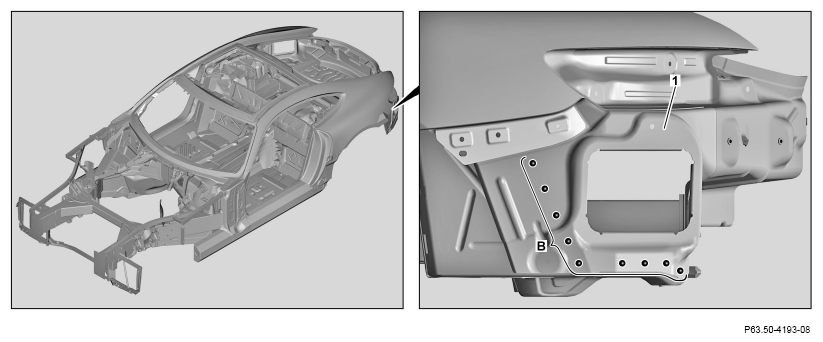

3. Expose and cut off self-piercing rivets on end plate (1) (area B).
4. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

   Shown on model 190.3

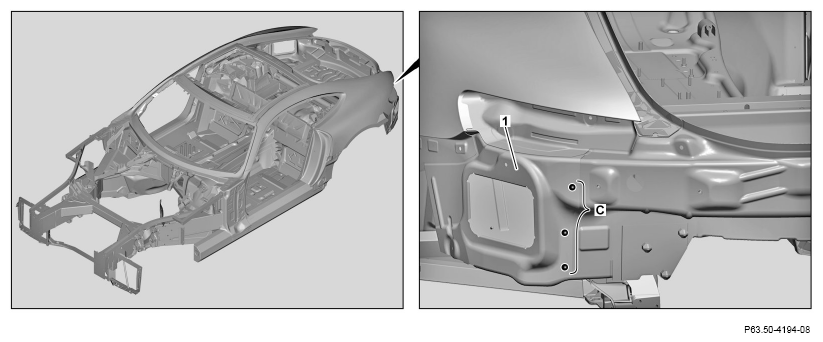

5. Expose and cut off self-piercing rivets on end plate (1) (area C).
6. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

   Shown on model 190.3

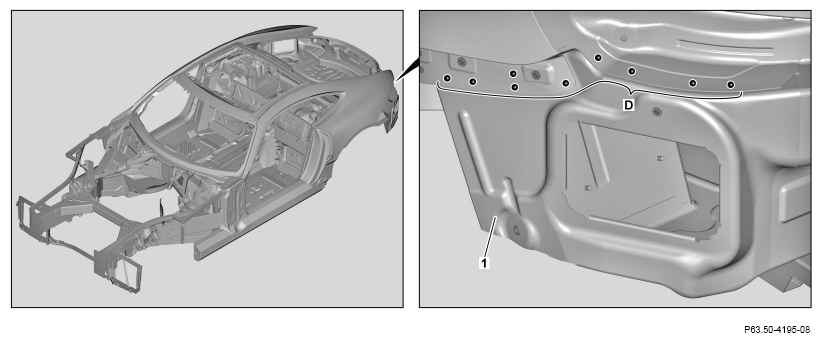

7. Expose and drill off self-piercing rivets on end plate (1) (area D).
8. Remove shavings using wet/dry vacuum cleaner.

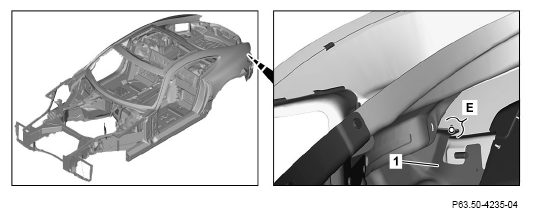

9. Expose blind rivet on end plate (1) inside and separate (area E).
10. Remove shavings using wet/dry vacuum cleaner.

    Shown on model 190.3

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Shown on model 190.3

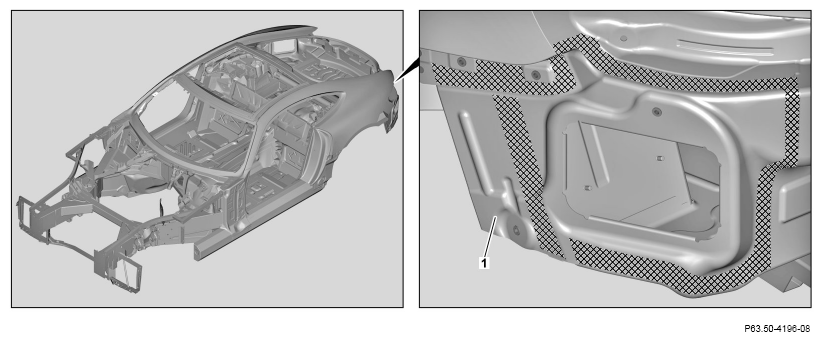

11. Heat end plate (1) in crosshatched area with heat gun.

    Cross-hatched area is bonded.

12. Remove damaged end plate (1)

    Courtesy of MERCEDES-BENZ USA

    Shown on model 190.3

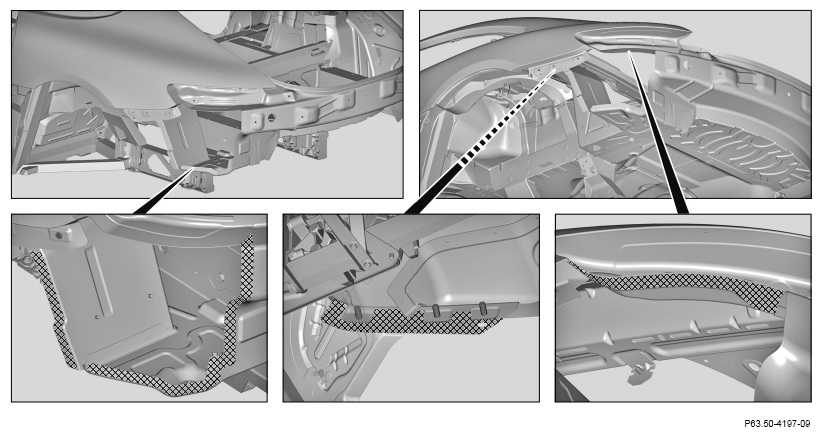

13. Grind mating surfaces on body down to bare metal in crosshatched areas.

    Observe pretreatment of bonding surfaces and weld joints.

14. Remove shavings using wet/dry vacuum cleaner.
