Center Main Floor Panel Reinforcement Removal - Ar63.40-P-1110-01RG

000 588 15 84 00 Heat gun

WS54.00-P-0125B

Model 190

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

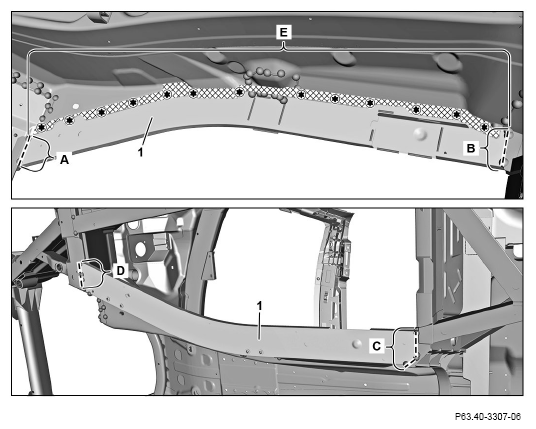

1. Expose weld seams/spots on center main floor reinforcement (1) and cut out (areas A and B).
2. Heat flow drill and self-tapping fillister head screws on center main floor reinforcement (1) inside with heat gun and unscrew (area E).

   Flow drill holes and self-tapping fillister head screws are bonded and must be heated.

3. Expose weld seams/spots on center main floor reinforcement (1) and cut out (areas C and D).
4. Heat center main floor reinforcement (1) in crosshatched area (E) with heat gun.

   Cross-hatched area is bonded.

5. Remove damaged center main floor reinforcement (1).
6. Remove shavings using wet/dry vacuum cleaner.

   Shown on model 190.4

   Courtesy of MERCEDES-BENZ USA
