B-Pillar Prepare For Installation - Ar63.20-P-1350-07RG

Model 190

The following steps are shown on the new part on the left side of the vehicle. Perform them analogously if right side of vehicle is damaged.

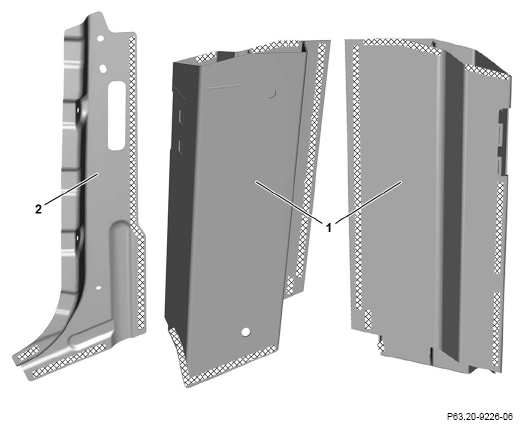

1. Grind mating surfaces on B-pillar (1) and B-pillar striker plate (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces and weld joints.

2. Remove shavings using wet/dry vacuum cleaner.
