Side Roof Paneling Prepare For Installation - Ar65.10-P-1020-02RG

Model 190.3

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

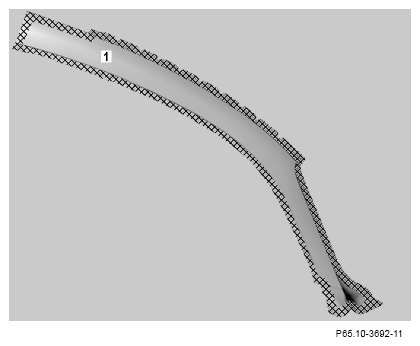

1. Grind mating surfaces on side roof paneling (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

2. Grind mating surfaces on welding bath support (2) down to bare metal in crosshatched areas.

Courtesy of MERCEDES-BENZ USA
