Side Roof Frame Separation - Ar65.20-P-1200-01RG

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 15 84 00 Heat gun		WS54.00-P-0125B

Model 190.3

with code 397 (Carbon roof)

Model 190.3

with code 416 (Panoramic sunroof)

Model 190.3

with code M032 (Black Series version)

The following operation steps are shown on the left side of the vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.

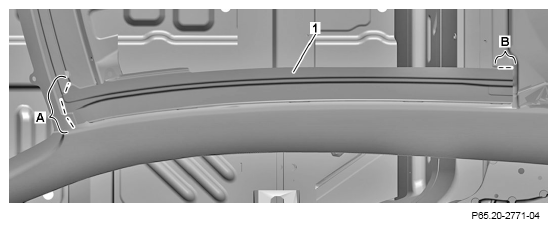

1. Expose weld seams on side roof frame (1) and cut off (areas A and B).
2. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

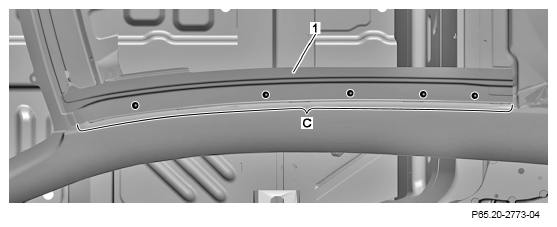

3. Expose self-pierce rivets on side roof frame (1) and unrivet with rivet press tool (area C).

   Courtesy of MERCEDES-BENZ USA

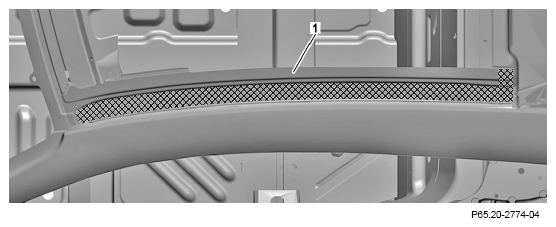

4. Heat side roof frame (1) in crosshatched area with heat gun.

   Cross-hatched areas are bonded with adhesive.

5. Remove damaged side roof frame (1).
6. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

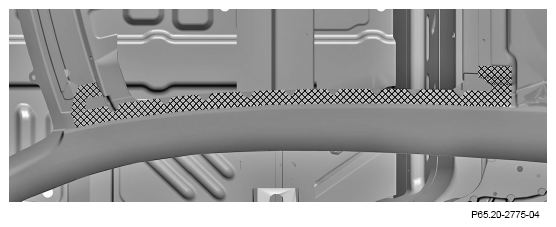

7. Level mating surfaces on body in cross-hatched areas and grind down to bare metal.

   Observe pretreatment of bonding surfaces and weld joints.

8. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
