Center Roof Paneling Separation - Ar65.10-P-1000-02RGA

	000 588 15 84 00 Heat gun		WS54.00-P-0125B
	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B

Model 190.3

except code 397 (Carbon roof)

except code 416 (Panoramic sunroof)

except code M032 (Black Series version)

1. Expose self-pierce rivets of center roof paneling (1) and unrivet with rivet press tool (area B).
2. Expose self-pierce rivets of center roof paneling (1) and cut off (areas A and C).

   Courtesy of MERCEDES-BENZ USA

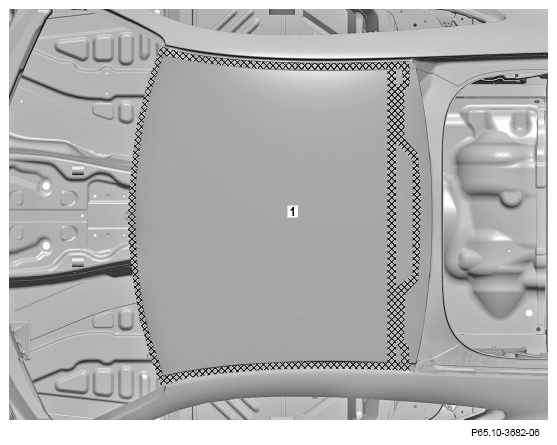

3. Heat center roof paneling (1) in cross-hatched area with heat gun.

   Cross-hatched area is bonded.

4. Remove damaged roof paneling (1).

   Courtesy of MERCEDES-BENZ USA

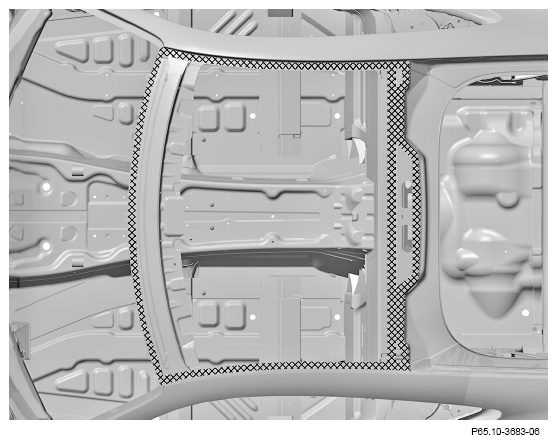

5. Level mating surfaces on body in cross-hatched areas and grind down to bare metal.

   Observe pretreatment of bonding surfaces.

6. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
