Center Roof Paneling Prepare For Installation - Ar65.10-P-1000-03RGA

Model 190.3

except code 397 (Carbon roof)

except code 416 (Panoramic sunroof)

except code M032 (Black Series version)

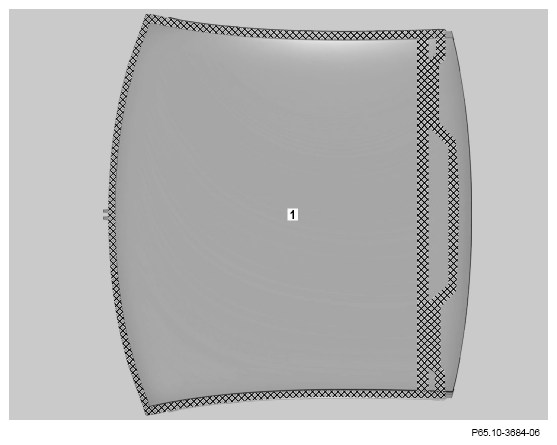

1. Grind mating surfaces on center roof paneling (1) down to bare metal in crosshatched area.

   Observe pretreatment of bonding surfaces.

2. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
