Center Roof Paneling Prepare For Installation - Ar65.10-P-1000-03RG

Model 190.3

with code 397 (Carbon roof)

Model 190.3

with code M032 (Black Series version)

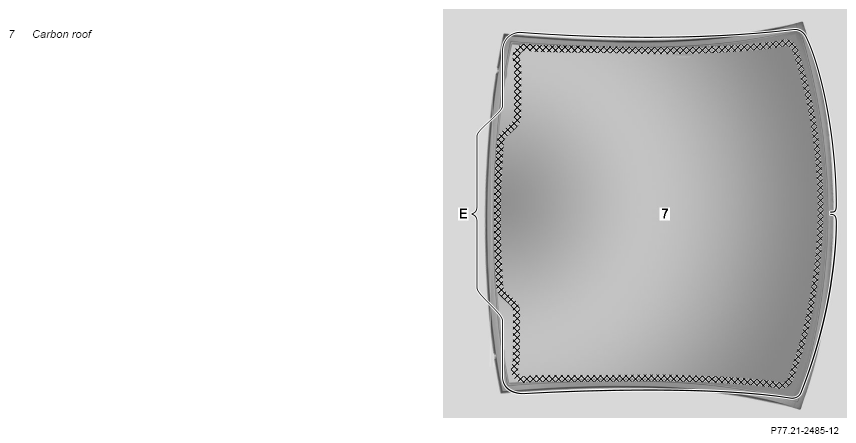

Shown on model 190.3 with code 397 (carbon roof)

Courtesy of MERCEDES-BENZ USA

Prepare center roof paneling

Do not touch present adhesive beads and bonding surfaces (E) with bare fingers and they should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.

Only use materials from repair kit approved and always observe processing notes included. Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.

1. Check carbon roof (7) with all detachable body components for damage.
2. Attach the cup suction tool to the outer side of the carbon roof (7).
3. Place carbon roof (7) on suitable subsurface with inside pointing upward.
4. Clean bonding area (E) on carbon roof (7).

   Apply cleaner to bonding surface (E) and allow to dry completely.

5. Apply primer to bonding surface (E).

   Observe processing notes for primer. Flash-off time min. 10 minutes. Otherwise the adhesive force of the adhesive material starts to decrease when installing window.
