Rear CROSSMEMBER For Soft-Top Compartment Removal - Ar64.20-P-1150-01RGR

	000 588 15 84 00 Heat gun		WS54.00-P-0125B
	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B

Model 190.4

Courtesy of MERCEDES-BENZ USA

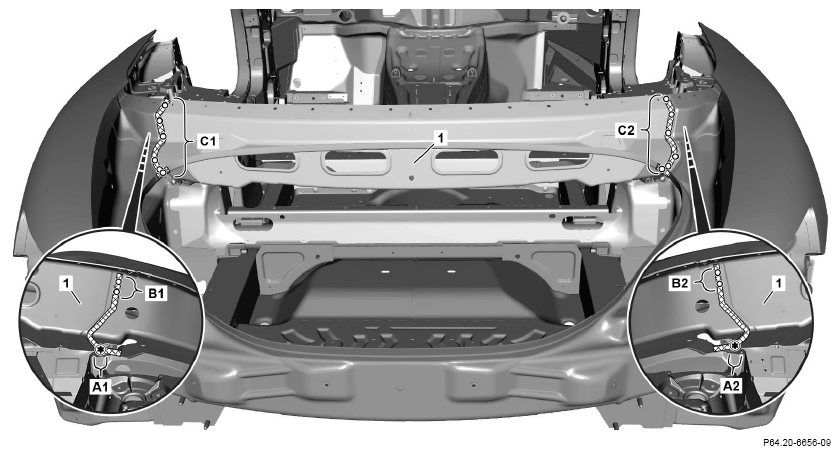

1. Expose self-pierce rivets on soft-top compartment crossmember (1) and cut off (areas B1, B2).
2. Expose self-piece rivets on soft-top compartment crossmember (1) and unrivet with rivet press tool (areas C1, C2).
3. Remove shavings using wet/dry vacuum cleaner.
4. Heat flow drill bolts and self-tapping fillister head bolts on softtop compartment crossmember (1) with heat gun and remove (areas A1 and A2).

   Flow drill bolts and self-tapping fillister head bolts are bonded.

5. Heat soft-top compartment crossmember (1) in cross-hatched area with heat gun.

   Cross-hatched area is bonded.

6. Remove damaged soft-top compartment crossmember (1).

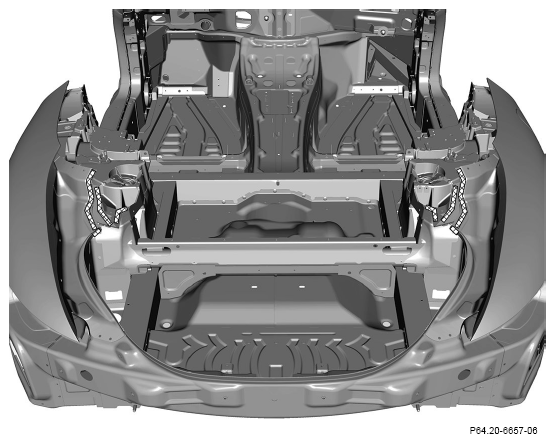

7. Level mating surfaces on body in cross-hatched areas and grind down to bare metal.

   Observe pretreatment of bonding surfaces.

8. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
