Prepare Rear Longitudinal Member Section - Ar64.20-P-1260-02RG

Model 190

The following operations steps are shown on new parts of the left side of vehicle. In case of damage, these steps must be similarly performed on the right side of the vehicle.

1. Mark separation point on rear longitudinal member (1) all the way around.

   Measure dimension (a1) of upper front edge, and dimension (a2) of lower front edge.

2. Cut new rear longitudinal member part (1) all the way around at separating point.
3. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

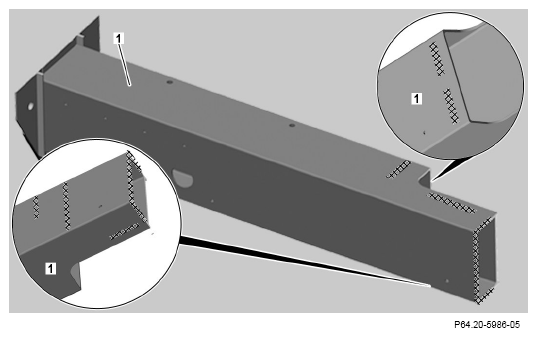

4. Grind new rear longitudinal member part (1) in cross-hatched areas down to bare metal.

   Observe pretreatment of bonding surfaces and weld joints.

5. Remove shavings using wet/dry vacuum cleaner.

   Courtesy of MERCEDES-BENZ USA

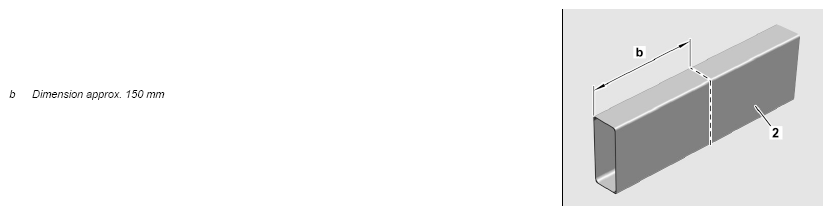

6. Mark insertion depth on inner shoe (2) all the way around.

   Measure dimension (b) from front edge.

   Courtesy of MERCEDES-BENZ USA

7. Grind front floor (7a) in cross-hatched areas down to bare metal.

   Observe pretreatment of bonding surfaces and weld joints.

8. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
