Prepare Rear End For Installation - Ar64.20-P-1020-05RG

Model 190

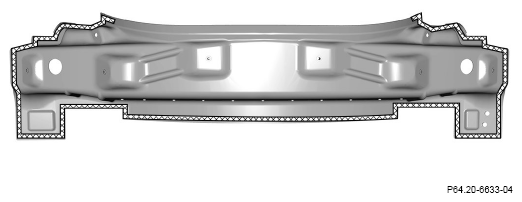

1. Grind inner and outer mating surfaces of rear end in crosshatched areas down to bare metal.

   Observe pretreatment of bonding surfaces and weld joints.

2. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
