Prepare Rear CROSSMEMBER For Soft-Top Compartment - Ar64.20-P-1150-02RGR

Model 190.4

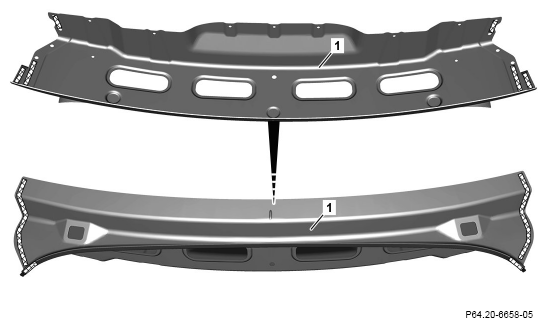

1. Grind inner and outer mating surfaces of soft-top compartment crossmember (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove shavings using wet/dry vacuum cleaner.

Courtesy of MERCEDES-BENZ USA
