Detach Rear End - Ar64.20-P-1020-01RG

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 15 84 00 Heat gun		WS54.00-P-0125B

Model 190

Courtesy of MERCEDES-BENZ USA

Shown on model 190.3

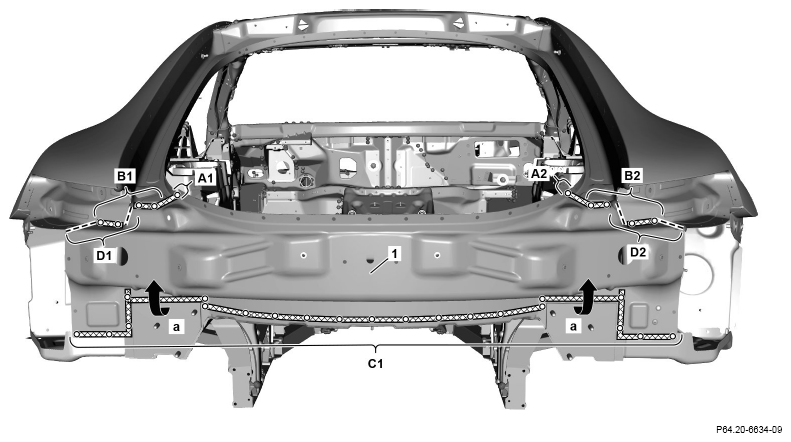

1. Expose self-pierce rivets on rear end (1) and unrivet with rivet press tool (areas A1 and A2).
2. Expose self-pierce rivets on rear end (1) and cut off (areas B1, B2 and C1).
3. Expose weld seams and spot welds on rear end (1) and cut off (areas D1 and D2).
4. Remove shavings using wet/dry vacuum cleaner.
5. Heat rear end assembly (1) in crosshatched areas with heat gun.

   Cross-hatched areas are bonded with adhesive.

6. Remove damaged rear end (1).

   Swing rear end (1) out at the bottom from the longitudinal members (arrows "a") and then guide it out at the top.

   Courtesy of MERCEDES-BENZ USA

   Shown on model 190.3

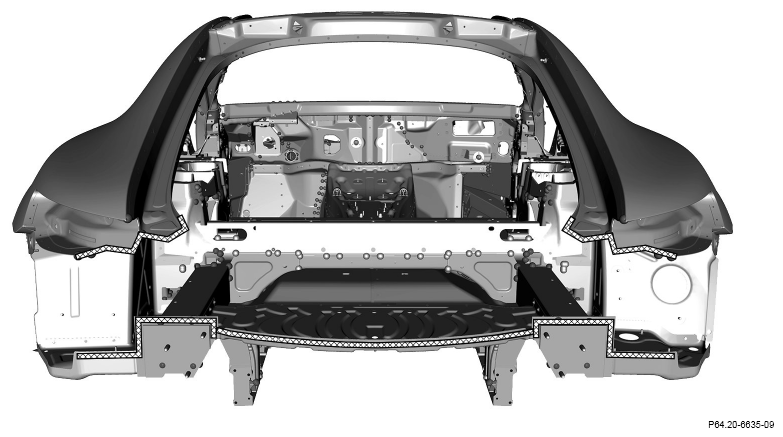

7. Level mating surfaces on body in cross-hatched areas and grind down to bare metal.

   Observe pretreatment of bonding surfaces and weld joints.

8. Remove shavings using wet/dry vacuum cleaner.
