Brake System - Inspect Fluid Level - AP42.10-P-4210A

Model 190

Shown on model 190

Courtesy of MERCEDES-BENZ USA

	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
	Check
1	Check fluid level in brake fluid expansion
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A

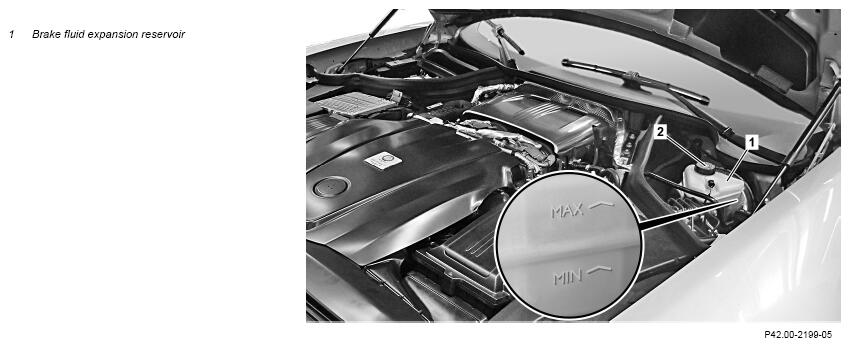

		The fluid level must lie between the "Min." and "Max." marks present on the brake fluid expansion reservoir (1).
		If the fluid level is too low, ↓ rectify problem.
		After obtaining special order.
		If the fluid level is too high, ↓ extract brake fluid up to Max. marking.
